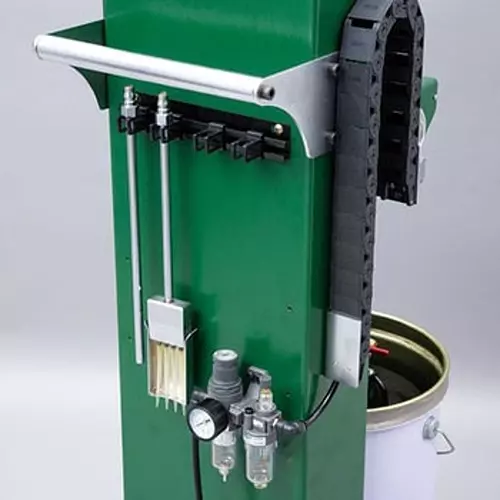

| Type of Product | Grease Feeder |
| Suitable For | AVG350-2,AVG350-6,AVG350-7 |
| Country of Origin | Japan |
| Used For | 16kg (recommended can inner diameter 265-285mm) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Grease Feeder |
Suitable For |
AVG350-2,AVG350-6,AVG350-7 |
Country of Origin |
Japan |
Used For |
16kg (recommended can inner diameter 265-285mm) |
Hose Length |
2.5 m |
Grease Type |
NLGI No.0-No.3 |
Name of Manufacturer/Packer/Importer |
Kyoto Machine Tools Co., Ltd. |
Ratio |
(Compression) 45: 1 |
Capacity (ml) |
(Euler) 25 |
Monotaro ID |
35144139 |
Discharge Pressure |
(Maximum) 40.5 Mpa |
Manufacturer Part Number |
AVG350 |
Input Air Pressure (MPa) |
0.4-0.9 |
Operating Ambient Temperature |
0-40℃ / (Grease temperature used) -10 to 40℃ |
Mass (Kg) |
80 |
Pump |
Air drive type |
Driving Source |
Compressed air |
Stroke (mm) |
(Pump) 65 |
Bearing Type |
Cone side: inner diameter 15 to 100 mm, hose side: nozzle adapter inner diameter 45 to 90 mm (bearing pitch 15 to 21 mm 4t to 10t equivalent to front and rear taper roller bearings) |
Outer Dimensions (mm) |
1390 x 560 x 580 (lower limit of pump) |
Filter |
(Air) Automatic discharge type |
