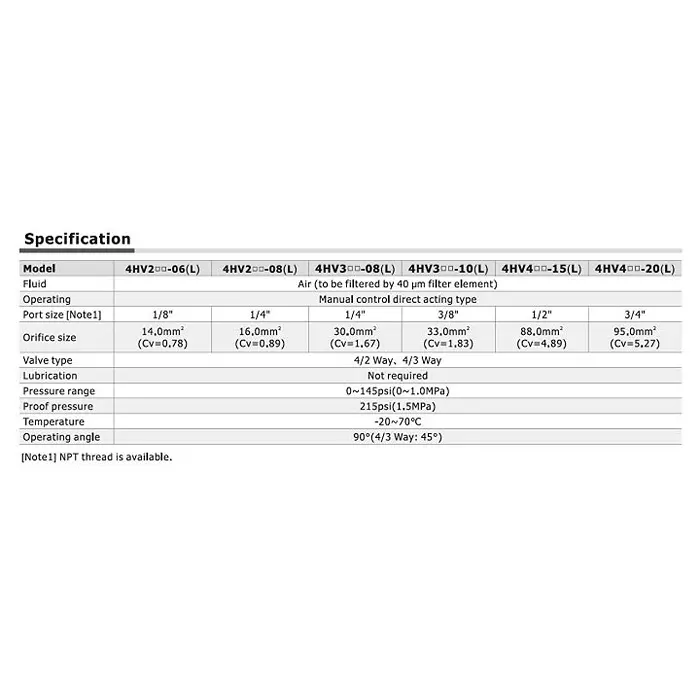

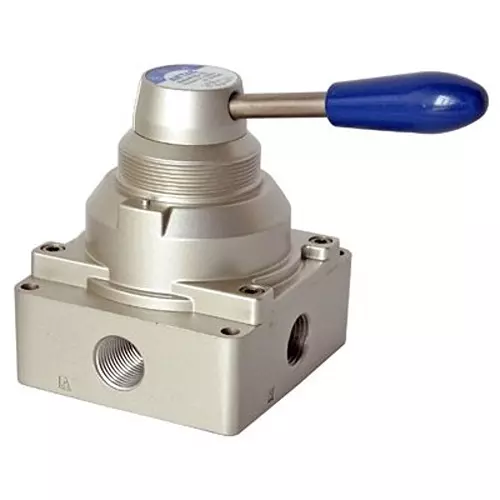

| Type of Product | Rotary Style Hand Lever Valve |
| Model No | 4HV230-08 |
| Port size | 6.35 mm |
| Pressure Range | 0-1.0 MPa(0-145 Psi) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Rotary Style Hand Lever Valve |
Model No |
4HV230-08 |
Port size |
6.35 mm |
Pressure Range |
0-1.0 MPa(0-145 Psi) |
Temperature |
-20-70 °C |
Series |
4HV Series |
Valve Type |
4 Port (4 Way) 3 Position Closed Center |
Fluid |
Air (to be filtered by 40 μm filter element) |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
A-Tech Pneumatic Private Limited |
Port Size (inch) |
1/4 inch |
Proof Pressure |
1.5 Mpa (215 Psi) |
Angle |
90° (4/3 Way: 45°) |
Operating |
Manual Control Direct Acting Type) |
