| Model No | K-280 |
| Type of Product | Bench Milling And Drilling Machine |
| Country of Origin | Japan |
| Included Components | Drill chuck, clamp |
Model No |
K-280 |
Type of Product |
Bench Milling And Drilling Machine |
Country of Origin |
Japan |
Included Components |
Drill chuck, clamp |
Monotaro ID |
35121721 |
Name of Manufacturer/Packer/Importer |
HOZAN Corporation |
Import Country |
Direct Import from Japan |
Power Consumption (W) |
200 |
Rated Voltage (V) |
AC39 (AC100V dedicated transformer included) |
Trusco Part No. |
810-7607 |
Mass (Kg) |
5.9 (drill stand) + 3.7 (table) + 1.9 (motor) + 2.5 (transformer) Total weight approx. 14 |
Rotational Speed |
1200 to 6000 min¯¹ [rpm] |
Power Cable (m) |
1.7 (from plug to transformer) |
Chucking Range (Φmm) |
(For end mill) 6mmΦ only, (for drill) 1.0mm ~ 10.0mmΦ |
Rated Time (minutes) |
30 |
Base Dimensions (mm) |
200x200 |

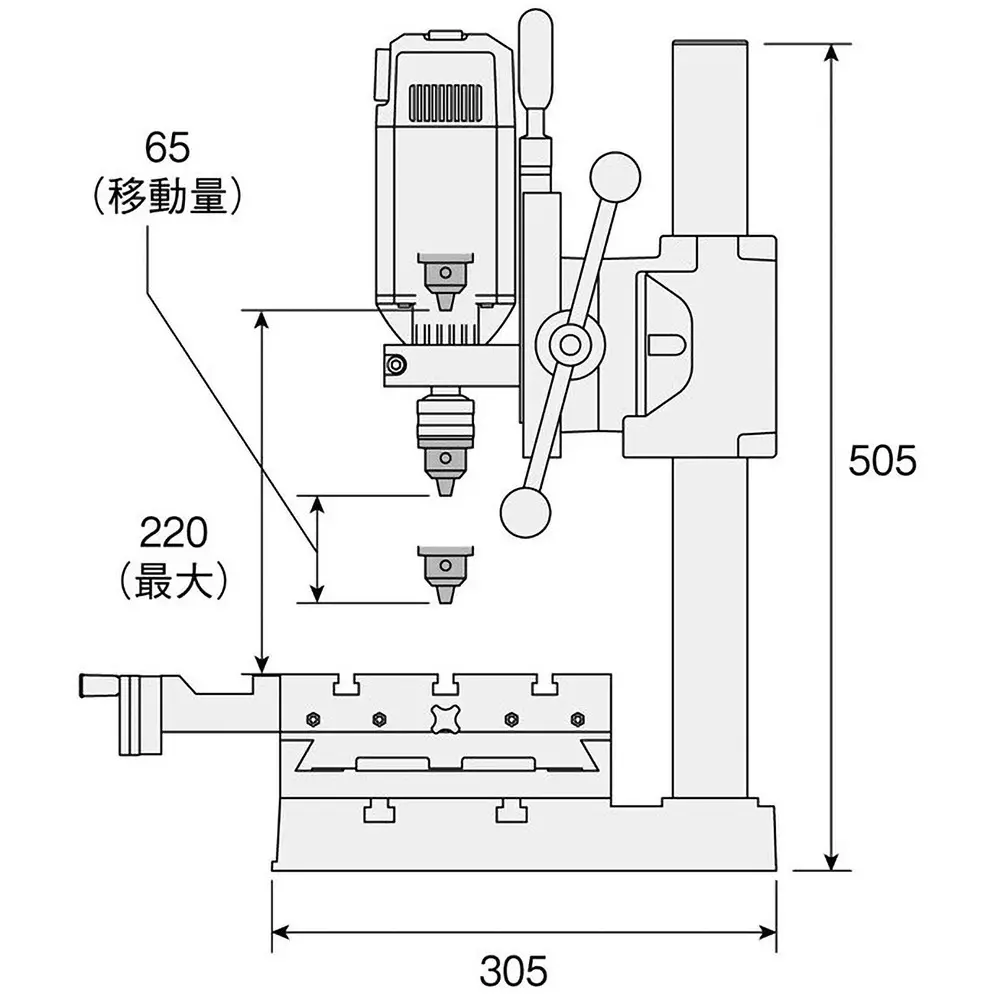

Dimensions (H x W x D) (mm) |
505x350x420 |
Slide |
Base/left and right 140mm, front/back 110mm (front 70mm/back 40mm) Drill stand/up/down 65mm |
