| Model No | N-KLM-78-M10-30-SR |

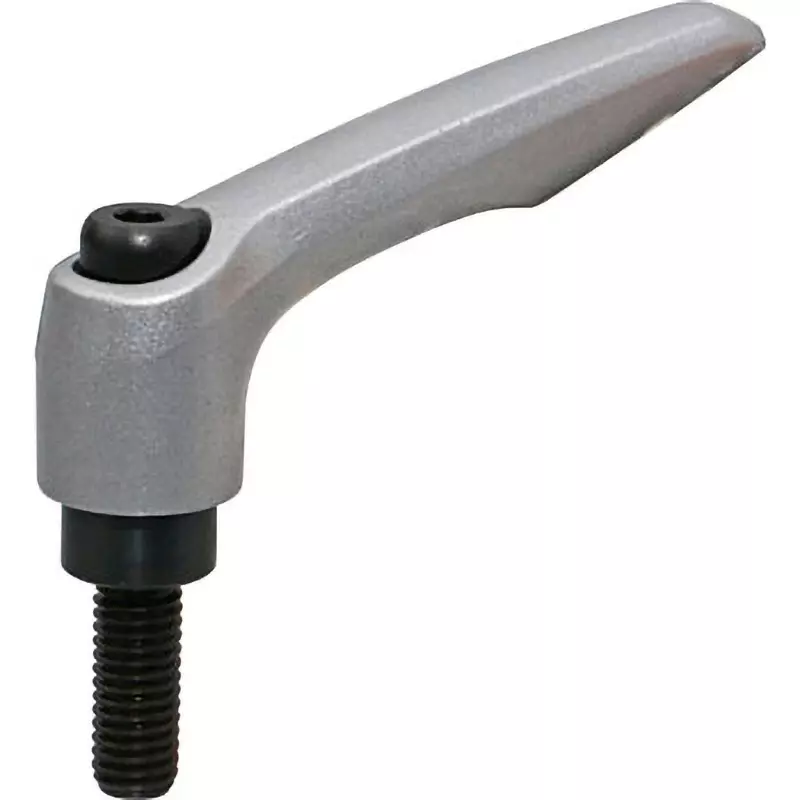

| Type of Product | Clamp Lever Male Screw |
| Country of Origin | TAIWAN |
| Color | Silver |
Model No |
N-KLM-78-M10-30-SR |
Type of Product |
Clamp Lever Male Screw |
Country of Origin |
TAIWAN |
Color |
Silver |
Material |
Zinc die casting |
Shaft Material |
Iron |
Monotaro ID |
20062218 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Type |
Clamp lever |
Shape |
L-shape |
Import Country |
Direct Import from Japan |

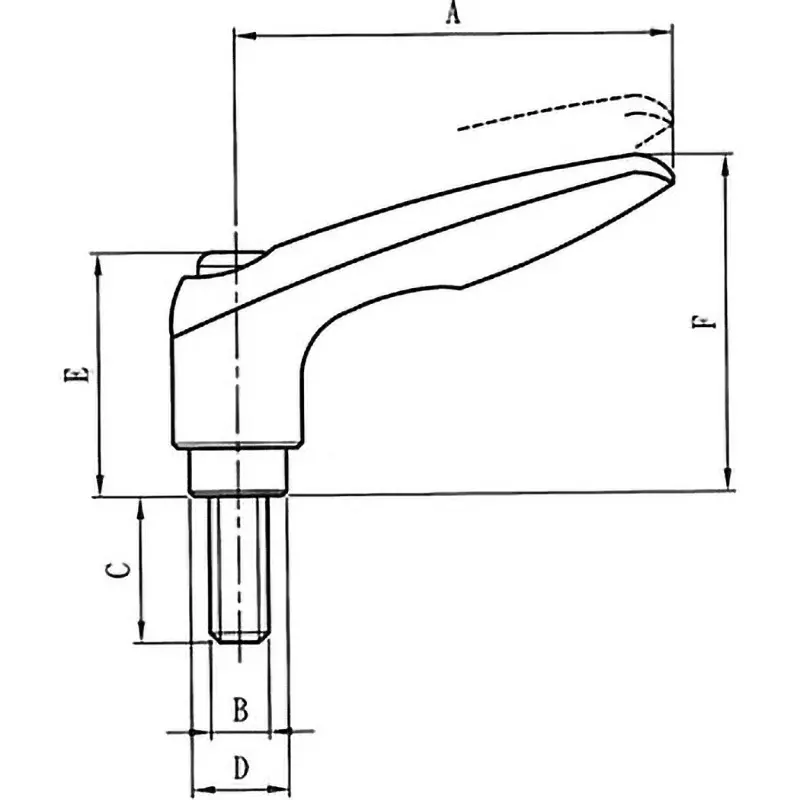

Dimension D (Φmm) |
16 |
Dimensions B (mm) |
M10x1.5 |
Dimensions A (mm) |
78 |
Connection to Equipment |
Male screw |
Dimensions E (mm) |
36 |
Mounting Hole Diameter (Φmm) |
M10 |
Cell Spacing (mm) |
1.5 |
Dimensions F (mm) |
55 |
Turning Radius |
78 mm |
Mounting Length (mm) |
30 |
