| Model No | EYFCA1WC060N |
| Type of Product | Robotech Impact |
| Country of Origin | Japan |

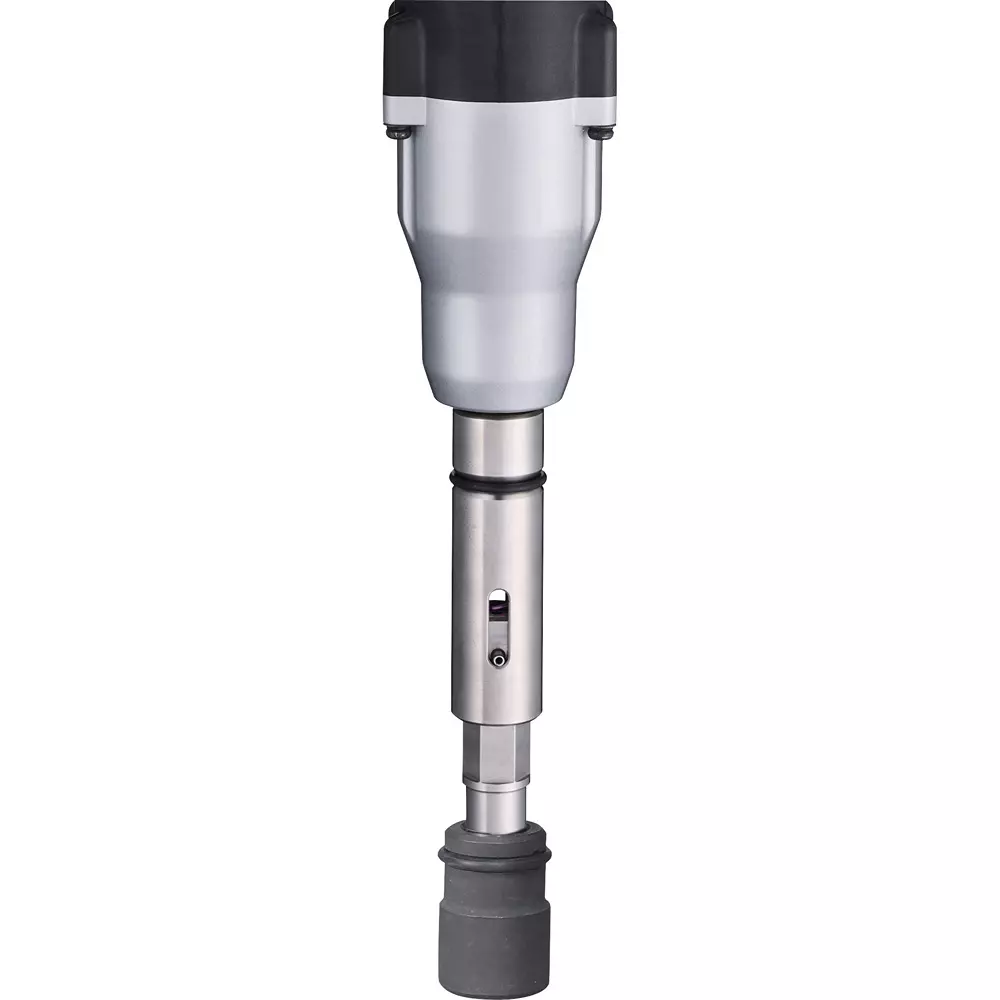

| Included Components | Telescopic socket, signal line plug, power line plug |
Model No |
EYFCA1WC060N |
Type of Product |
Robotech Impact |
Country of Origin |
Japan |
Included Components |
Telescopic socket, signal line plug, power line plug |
Monotaro ID |
12473311 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Dimension (mm) |
Bit wrench: □12.7 |
Import Country |
Direct Import from Japan |
Rated Voltage (V) |
15 |
Overall Height (mm) |
About 89 |
Overall Width (mm) |
About 91 |
Accuracy |
Torque: ±15% *Reference value based on manufacturer's measurement conditions |
Overall Length (mm) |
306 (main unit only) |
Mass (Kg) |
Approx. 1.65 (body only), Approx. 1.95 (including telescopic socket) |
RoHS Directive |
Correspondence |
Specification Class |

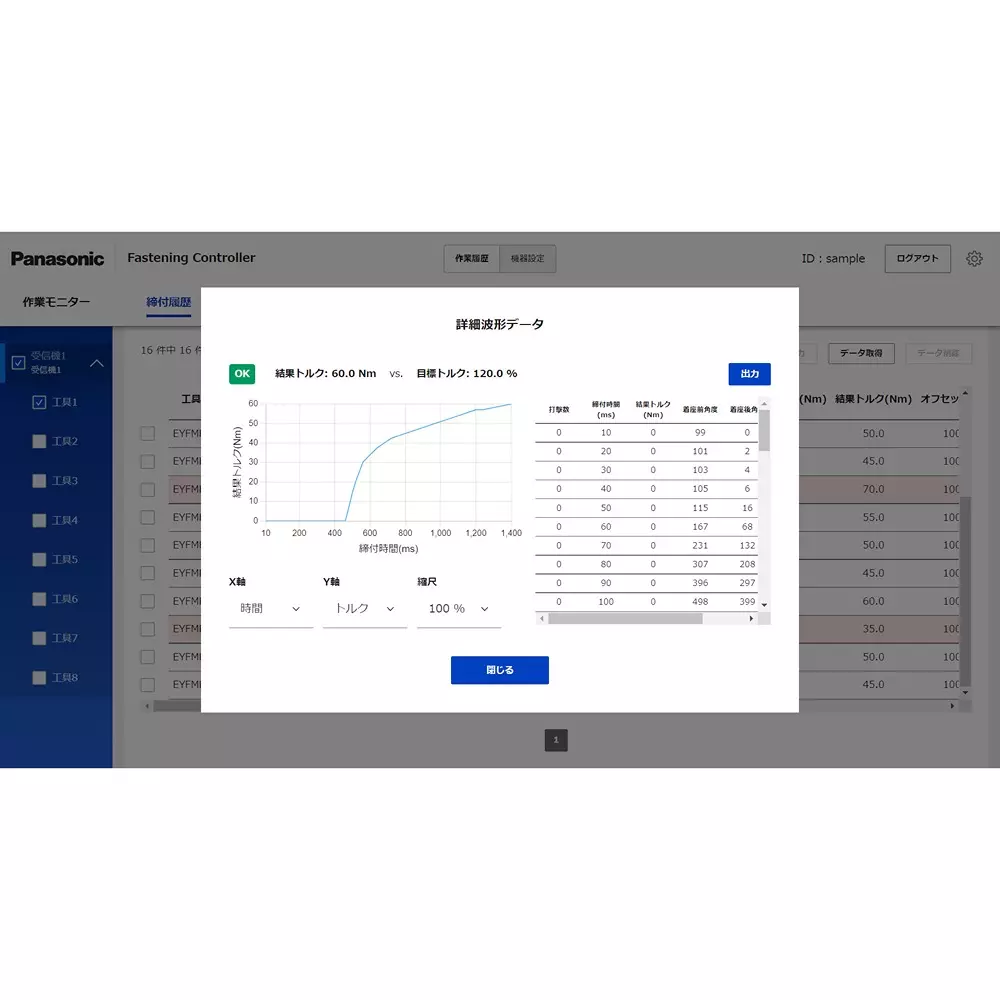

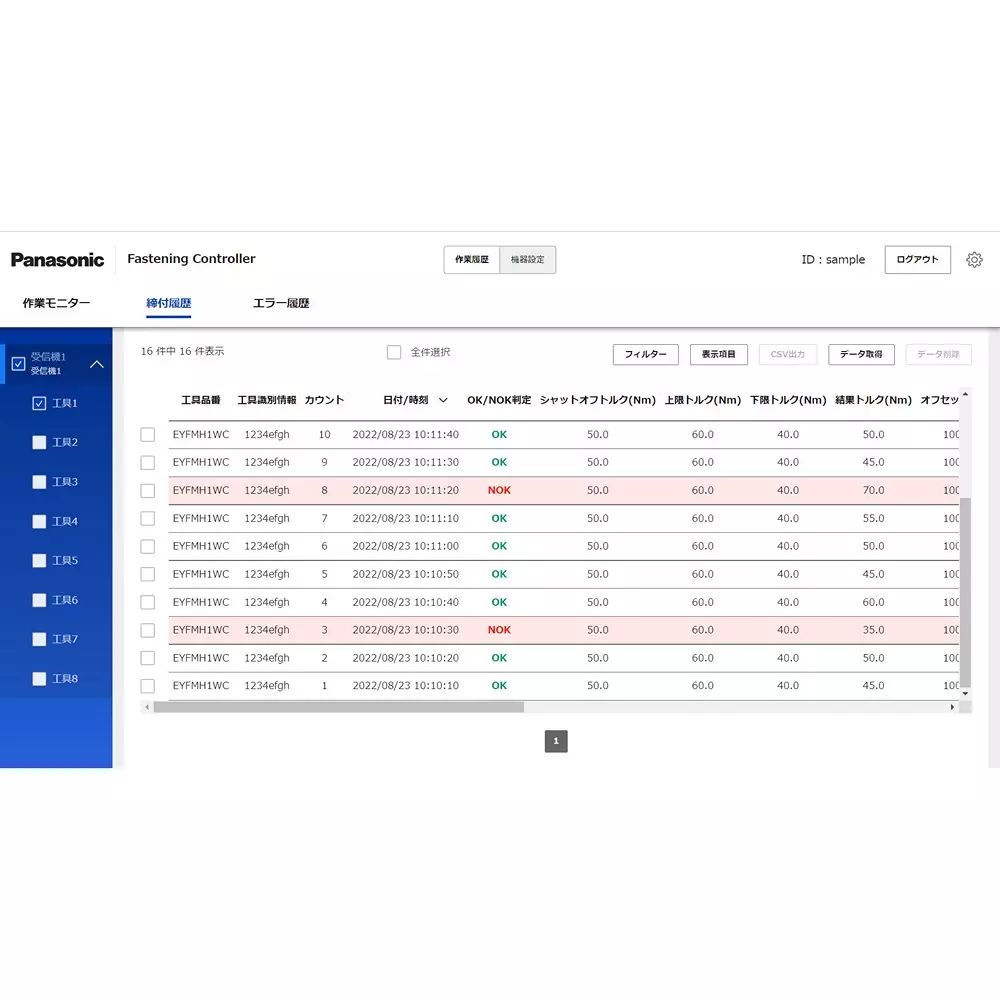

Torque measurement, angle (rotation angle from seating), waveform (tightening torque curve) measurement, wireless co mmunication function |
Rotational Speed |
500 to 2300 min¯¹ [rpm] (configurable) |
Number ofImpact (min <sup>-1</sup> [times / min]) |
0 to 2700 |
Torque Range (Nm) |
! |
