| Type | L clamp/F type clamp |
| Type of Product | Vise Bar Handle |
| Model No | BH10012A |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
L clamp/F type clamp |
Type of Product |
Vise Bar Handle |
Model No |
BH10012A |
Country of Origin |
Japan |
Monotaro ID |
31553245 |

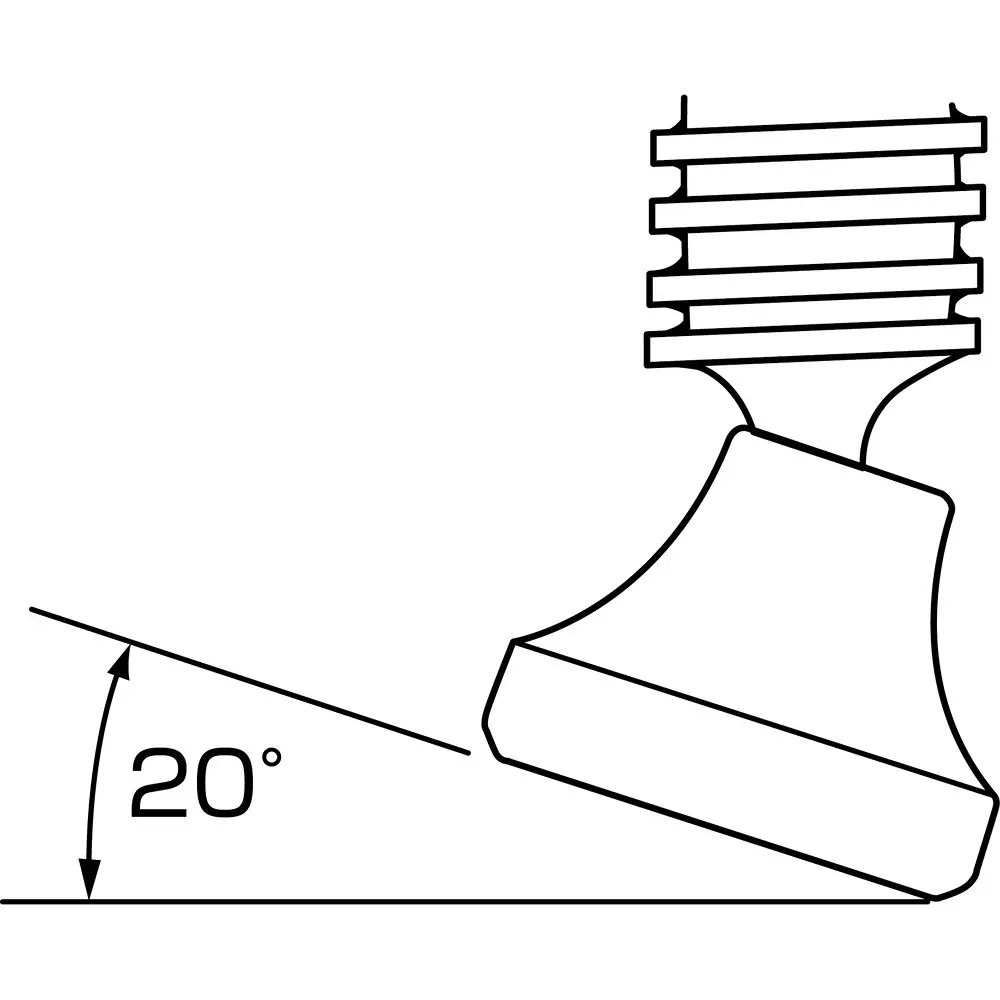

Swing Angle |
20° |
Name of Manufacturer/Packer/Importer |
Lobtex Co., Ltd. |

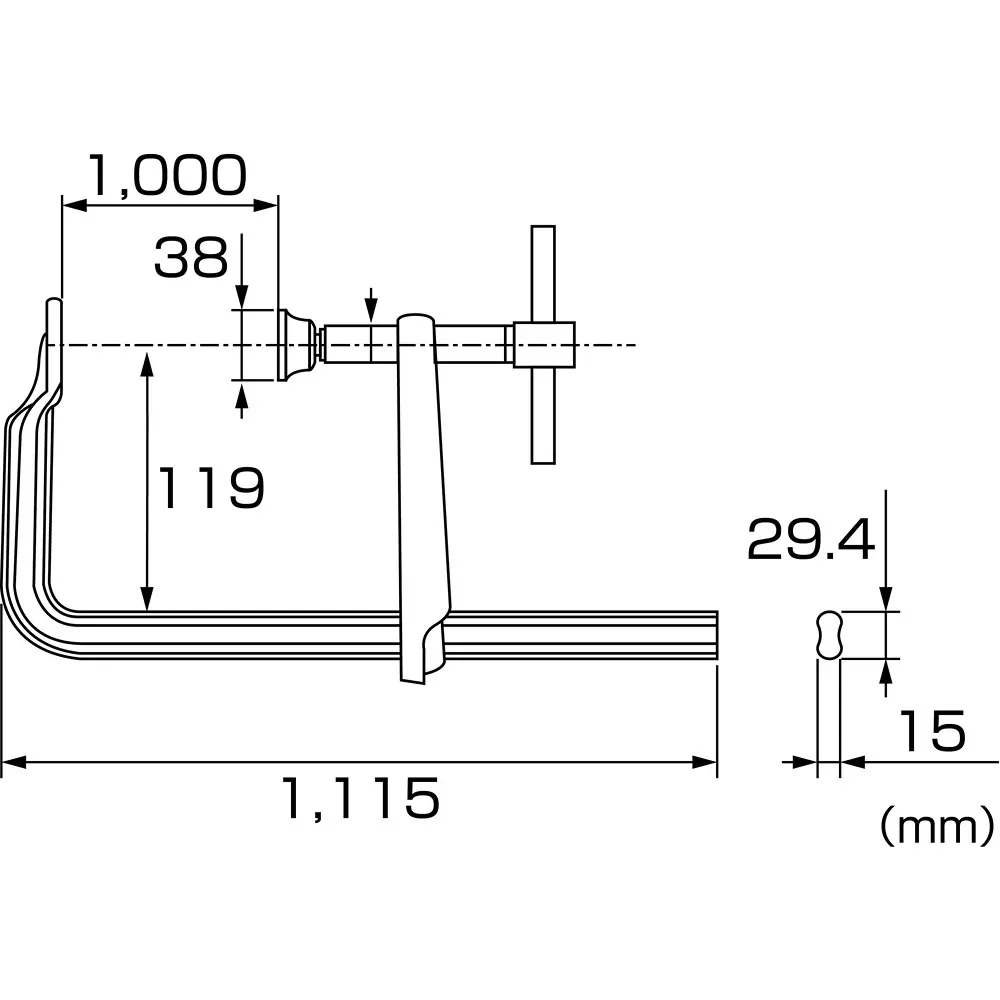

Dimension D (Φmm) |
38 |
Import Country |
Direct Import from Japan |
Trusco Part No. |
125-8978 |
Main Unit Material |
Steel |
Overall Length (mm) |
1115 |
Maximum Jaw Opening |
1000 mm |
Pipe Diameter |
Φ38 mm |
Dimension (mm) |
1000x119 |
Dimension F (Φmm) |
29.4 |
Dimension E (Φmm) |
15 |
Frame (mm) |
15x29.4 |
Jaw Depth (mm) |
119 |
Mass (Kg) |
4.7 |
Maximum Clamping Force (kN) |
14.5 |
