| Type of Product | Digimatic Height Gauge |
| Model No | HDM-30AX |
| Power Supply | One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
| Display | 7-digit LCD, 11mm character height |
Type of Product |
Digimatic Height Gauge |
Model No |
HDM-30AX |
Power Supply |
One Button-Type Silver Oxide Battery SR44 (No. 938882) Is Included As Standard (The Button-Type Silver Oxide Battery Included As Standard Is For Monitor Use) |
Display |
7-digit LCD, 11mm character height |
Country of Origin |
Japan |
Included Components |
Scriber (No. 905200), Scriber clamp box (No. 05GZA033) |
Battery Life (hours) |
3500 |

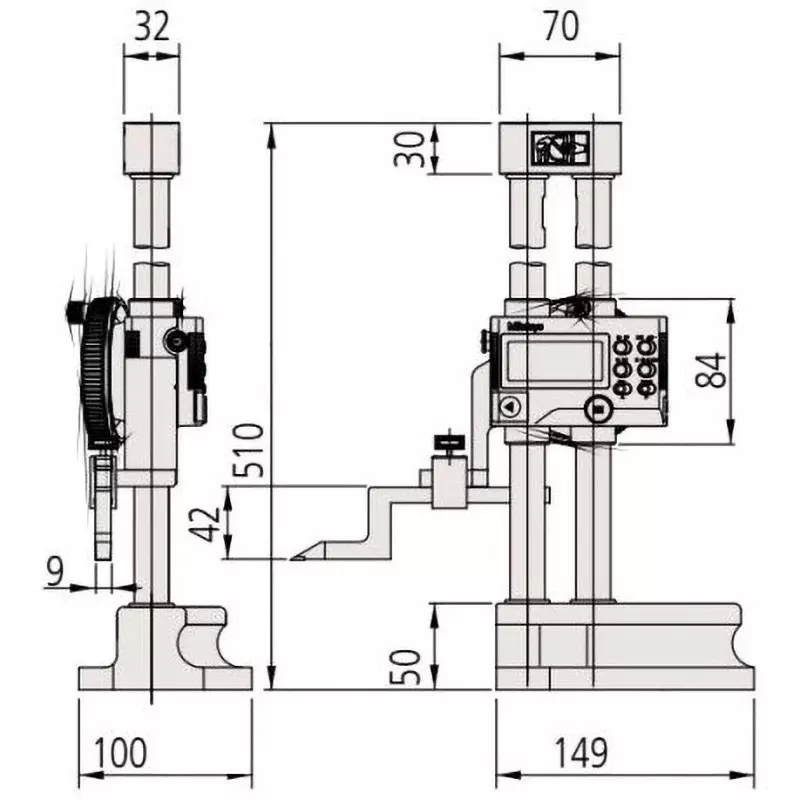

Overall Height (mm) |
510 |
Maximum Response Speed (mm/s) |
500 |
Display Format |
Digital |
Function |
Origin setting function (ABS measurement system), zero setting function (INC measurement system), origin return function, preset function (ABS/INC measurement system), direction switching function, hold function, error warning function, measurement data output function, coarse/fine movement switching, low battery voltage warning, ball diameter correction |
Repeatability (mm) |
0.01 mm |
RoHS Directive |
Correspondence |
Series |
192 |
Monotaro ID |
10174927 |
Product Type |
Body |
Trusco Part No. |
336-1713 |
Minimum Reading (mm) |
0.01/0.005 mm Switchable |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Mitutoyo Corporation |
Mass (Kg) |
5.7 |
Product Code |
192-663-10 |
Measuring_Range |
300 mm |
Maximum Permissible Error (μm) |
EMPE：±20 |
