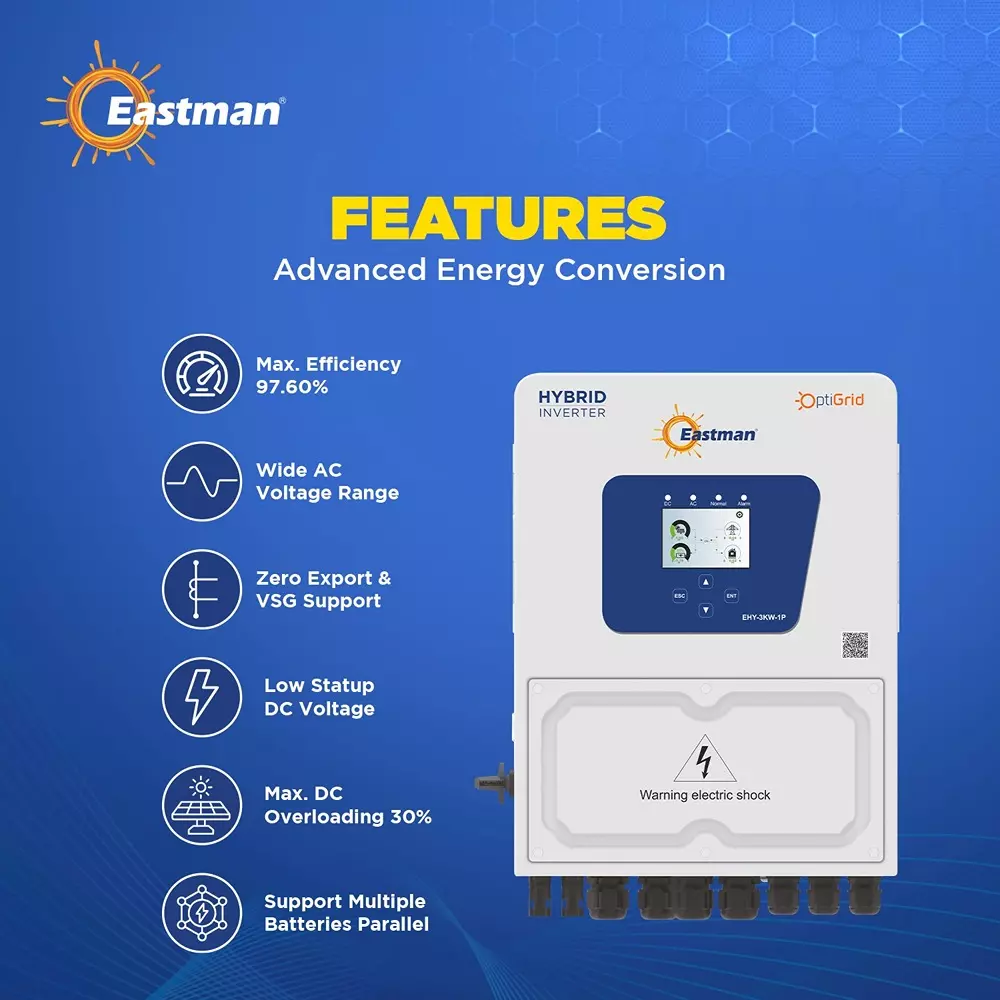

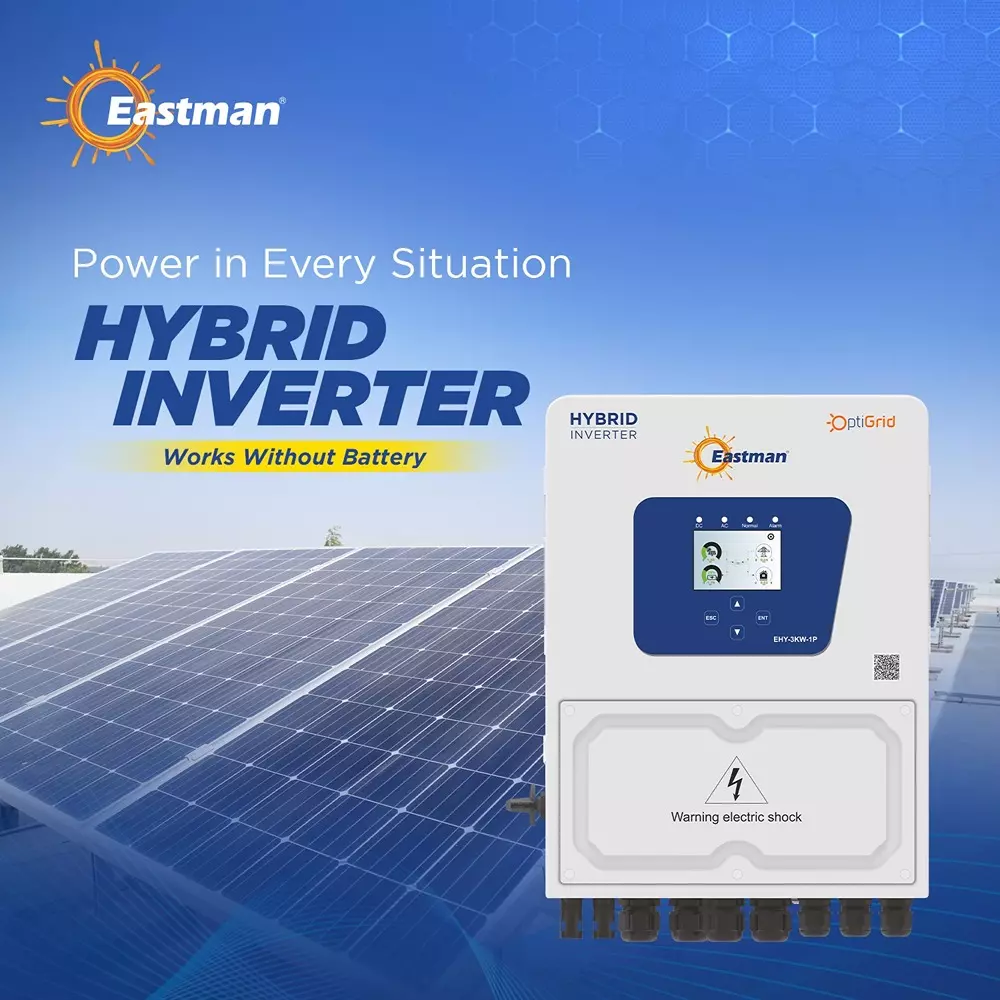

| Type of Product | Hybrid Solar Inverter |
| Phase | 1 |
| Frequency | 50 Hz |
| Model No | EHY-3KW-1P |
Type of Product |
Hybrid Solar Inverter |
Phase |
1 |
Frequency |
50 Hz |
Model No |
EHY-3KW-1P |
Dimension |
330 × 430 × 229 mm |
Country of Origin |
India |
Warranty Duration |
10 Years |
Name of Manufacturer/Packer/Importer |
EAPL |
Maximum Input Voltage |
500 VDC |
Nominal Output Voltage |
230 V |
Rated Output Power |
3 kW |
Surge Protection |
Type II |
Short Circuit Current |
17 Amp (Max) |
Interface |
RS232, RS485, CAN |
No. of MPP Trackers |
1 |
Start-up DC input Voltage |
125 V |
Maximum Input Current |
DC 13 Amp |
Ingress Protection |
IP65 |
Rated Output Power (VA) |
3300 VA |
MPPT Operating Range (V) |
125–500 V |
Maximum Input Power |
3900 W (DC) |
