| Type of Product | Coupler Socket for High Pressure |
| Model No | HP-6S |
| Material | Body: S45C (zinc plated), O-ring and valve packing: NBR |
| Country of Origin | JAPAN |
Type of Product |
Coupler Socket for High Pressure |
Model No |
HP-6S |
Material |
Body: S45C (zinc plated), O-ring and valve packing: NBR |
Country of Origin |
JAPAN |
Thread Size |
Rc3/4 |
Monotaro ID |
6069187 |
Operating Temperature Range |
-20 - +80°C |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Socket or Plug |
Socket |
Import Country |
Direct Import from Japan |

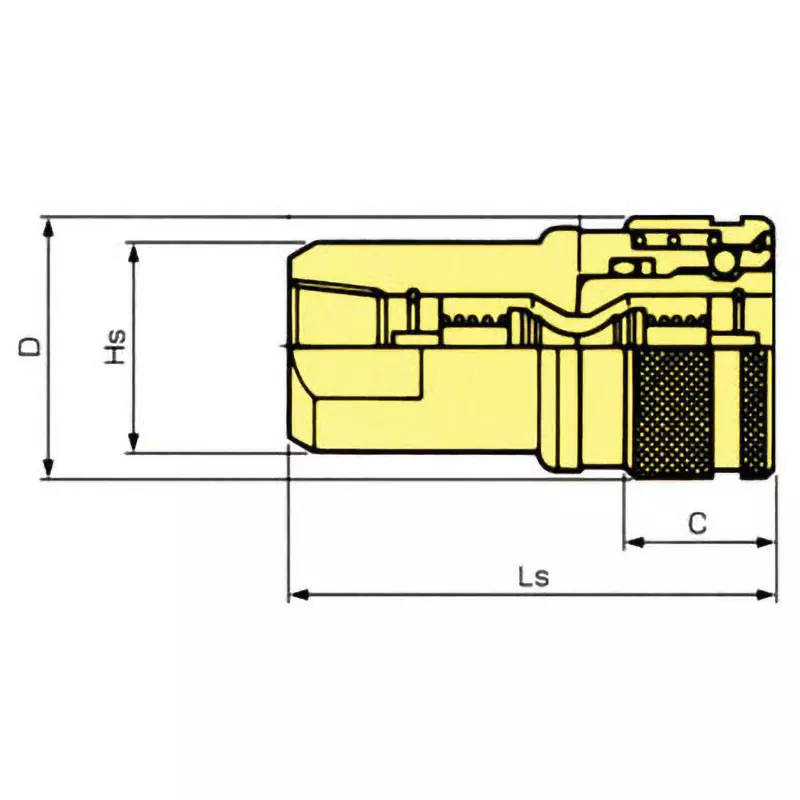

Dimensions C (mm) |
23 |
Maximum Operating Pressure (MPa) |
21 |
Suitable Fluid |
hydraulic oil |
Dimension Hs (mm) |
35 x Φ38.5 |
Mating Connection Size |
R3/4 |
Mass (g) |
450 |
Dimension D (Φmm) |
43.5 |
Dimension Ls (mm) |
72 |
