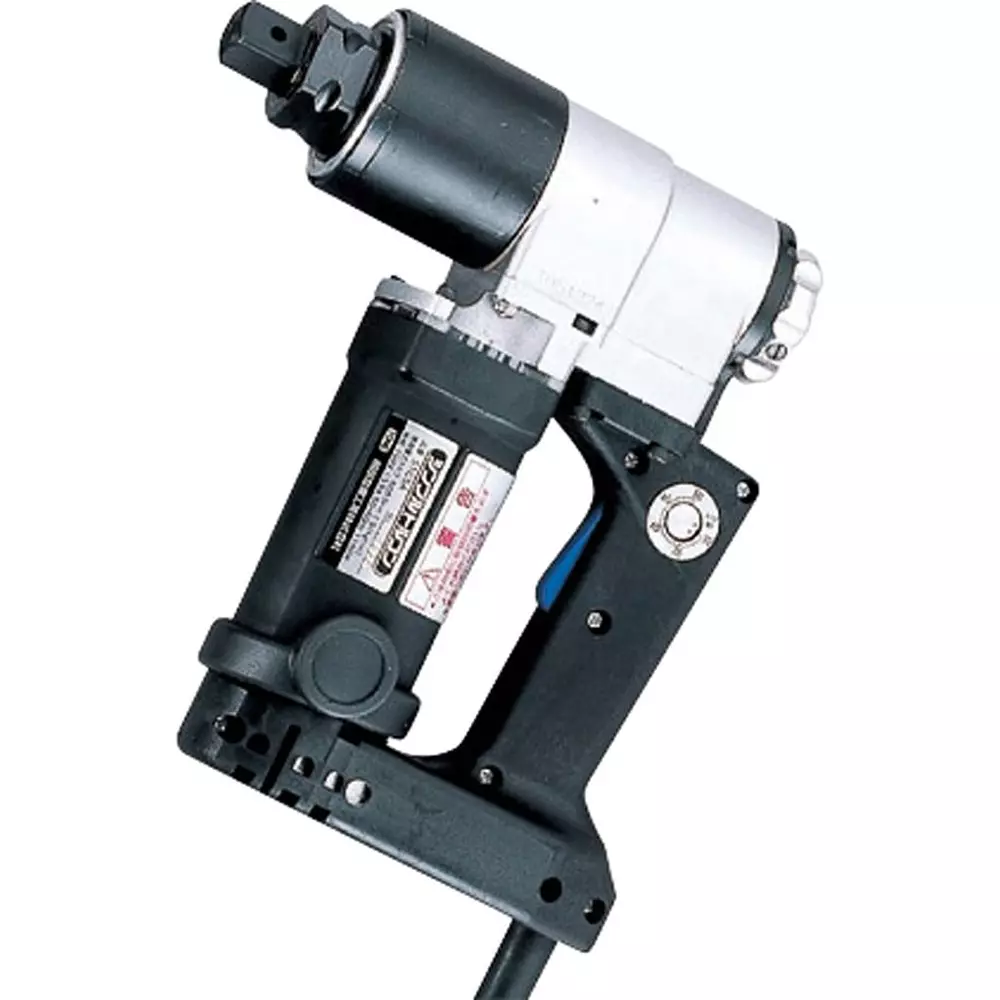

| Type of Product | Simple Torque Converter |
| Voltage | 200 V |
| Square Drive Size | 25.4 |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Simple Torque Converter |
Voltage |
200 V |
Square Drive Size |
25.4 |
Country of Origin |
Japan |
Included Components |
Q-type reaction force receiver: 1, L-type reaction force receiver: 1, I-type reaction force receiver: 1, Hexagon bar L-shaped wrench: 1, Hexagon socket set screw: 5, Instruction manual: 1, Metal case: 1 |
Name of Manufacturer/Packer/Importer |
TONE Co., Ltd. |
Width (mm) |
106 |
Height (mm) |
287 |
Pack of |
Each of 1 Pcs |
Monotaro ID |
42851613 |
Rotation Speed at No Load (min-1 rpm) |
16 |
Dimension L (mm) |
326 |
Product Code |
STC11T |
Torque Control Range (Nm) |
500 to 1100 |
Maximum Current (A) |
7.5 |
Maximum Power Consumption (w) |
1400 |
Dimension LB (mm) |
129 mm |
Dimension LC |
86 mm |
Dimension LA (mm) |
289 |
Dimensions Ld(mm) |
97 mm |
Dimension B (Φmm) |
25.4 |
Dimension d |
85 mm |
