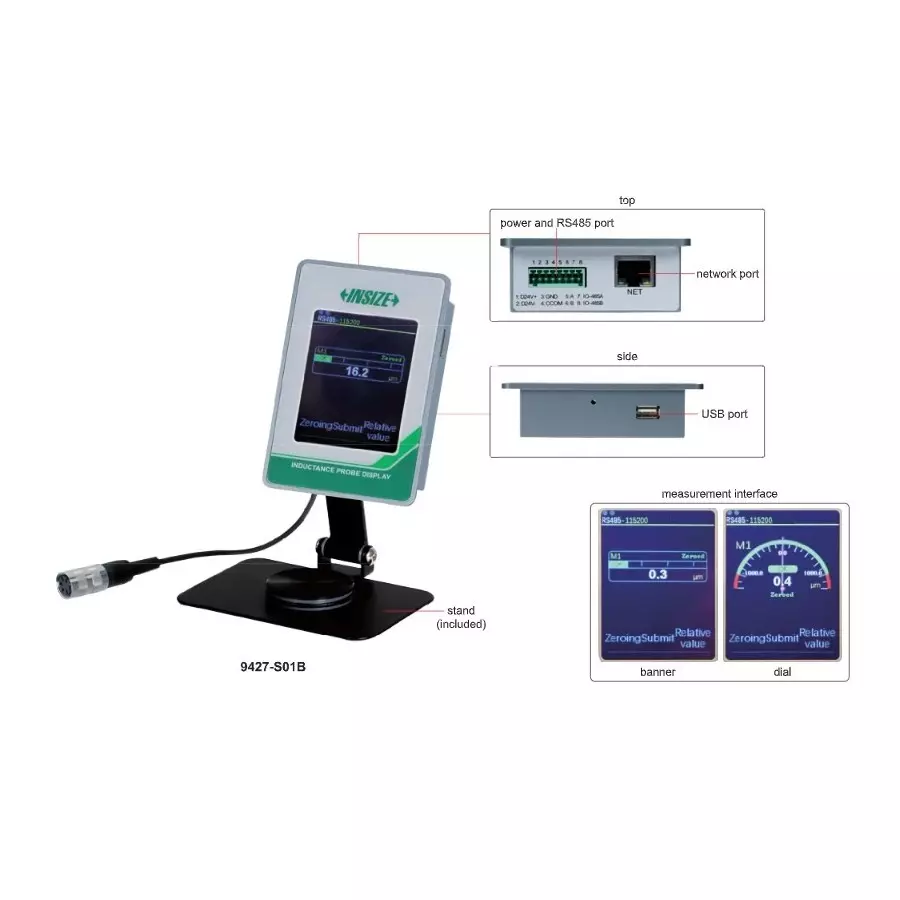

| Type of Product | Inductance Probe Display |
| Weight | 252 g |
| Model No | 9427-S01A |
| Range | ±1, ±2, ±5, ±10 mm (Adjustable) |
Type of Product |
Inductance Probe Display |
Weight |
252 g |
Model No |
9427-S01A |
Range |
±1, ±2, ±5, ±10 mm (Adjustable) |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Insize |
Type |
Standard |
Dimension |
113x73x30 mm |
Power Supply |
24 V DC |
Storage Environment |
Temperature: -20°C-50°C, Humidity: <80% (Non Condensing) |
Units |
µm, mm |
Resolution |
0.1, 1 µm |
Mode |
Display: Banner, Dial |
Display Type |
3.5 inch (88.9 mm) Touchable LCD Screen |
Operating Environment |
Temperature: 0°C-40°C, Humidity: <80% (Non Condensing) |
Port |
RS485 (Modbus RTU) |
No. of Channels |
1 |
Sampling time |
2, 4, 8, 16, 32 Seconds (Adjustable) |
Sensor Type |
Full Bridge |
Package Contains |
1 x Main Unit, 1 x Power and RS 485 Cable, 1 x Stand |
