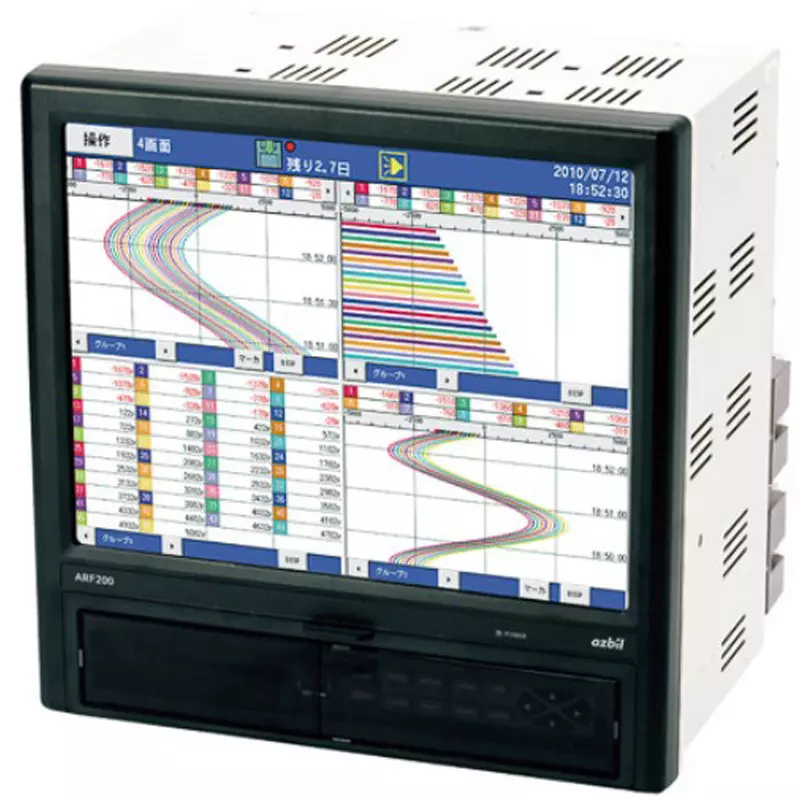

| Model No | ARF224ALA0000 |
| Type of Product | Kirokukei |
| Country of Origin | Japan |
| Monotaro ID | 41969979 |
Model No |
ARF224ALA0000 |
Type of Product |
Kirokukei |
Country of Origin |
Japan |
Monotaro ID |
41969979 |
Mass (Kg) |
About 7.2 |
Power Supply Voltage |
100 to 240 V AC 50/60 Hz |
Communication Function |
Media Ethernet(t 10BASE-T/100BASE-T) FTP server Reads data files from computers on the network FTP client Transfers data files to servers on the network SNTP client Synchronizes time with the SNTP server on the network WEB server HTTP1.0 Compliant Display/setting of measurement data and alarms via browser software E-mail When alarms are set, e-mail notification addresses up to 8 locations at specified times NX communication (option) Reads and records data from NX connected via Ethernet *1 NX Number of connectable units Up to 32 units (for 1 communication per NX unit) *2 Maximum number of input points ARF212: 12 analog points + maximum 108 communication data points, total 120 points ARF224: 24 analog points + maximum communication data 96 points, total 120 points ARF236 : Analog 36 points + communication data maximum 84 points, total 120 points ARF248: Analog 48 points + communication data maximum 72 points, total 120 points |
Import Country |
Direct Import from Japan |
Terminal Fitting Type |
Panel Mounting |
Name of Manufacturer/Packer/Importer |
Azbil Corporation |
Input |
Input type DC current, DC voltage, thermocouple, RTD input channel 12 points/24 points/36 points/48 points Input Measurement cycle (100 ms specification) Approx. 100 ms/all points (1 s specification) Approx. 300 ms/all points accuracy Rating ±0.1%±1digit (with exceptions) |
Alarm |
Number Of Settings Up to 4 Settings Per Point Alarm Type Upper Limit, Lower Limit, Difference Upper Limit, Difference Lower Limit, Abnormal Data On Delay Delay Time Setting Range 1 to 3600 S Alarm Output And/Or Setting Possible |
Operating Environment |
Ambient Temperature / Humidity Range: 0 to 50°C 20 to 80% Rh, Power Supply Voltage: 90 to 264 V AC, Power Supply Frequency: 50 / 60Hz ± 2%, Posture: Left / Right Forward Tilt 0°Backward Tilt 0-20 °, Warm-Up Time : 30 Minutes Or More |
Recording Type |
Internal memory Flash memory (capacity 8MB) External memory CF (compact flash) card (capacity 128MB to 2GB) Recording cycle 100, 200, 500ms Note 1) 1, 2, 3, 5, 10, 15, 20, 30s 1, 2 , 3, 5, 10, 15, 20, 30, 60min Note 1) Regardless of the recording cycle, 56 points/group can be registered up to 6 groups (up to 128 points in total). Recorded data Measured data: File name (group name), recording start date and time, tag, measured data, alarm status/type, marker text, setting parameter save format Binary Note 2) /CSV format can be selected for each groupNote 2) A data analysis tool (sold separately) is required to handle binary format data on a PC. Saving method Manual start/stop, schedule, trigger signal (alarm, contact input), data recording before and after the trigger point |
Maximum Current Consumption |
65 VA (Amp ) |
Calculation Factor |
Number of calculation points Up to 128 points Calculation types Arithmetic calculation, comparison calculation, logic calculation, general function, integration calculation, channel data calculation, dew point, relative humidity, F value, CF card remaining capacity, etc. |
Display Part |
Display 12.1 type TFT color LCD Display type Measurement data (trend display, numerical value display, bar graph display) Historical trend display (can be displayed simultaneously with real-time trend) Information display (alarm display, marker list, file list) Setting Screen (alarm, calculation, memory, system, maintenance, communication, etc.) LCD backlight Auto/manual off function, 4 levels of brightness adjustable Backlight brightness half-life Approximately 5 years |
