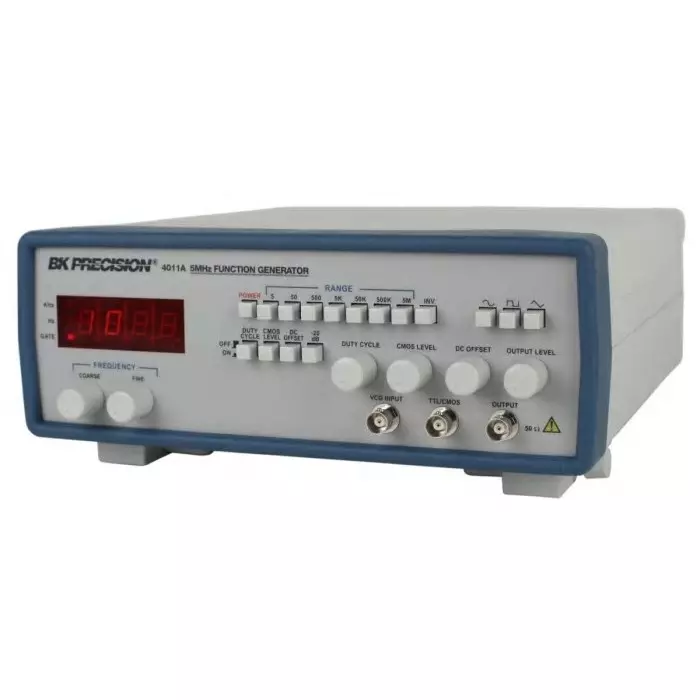

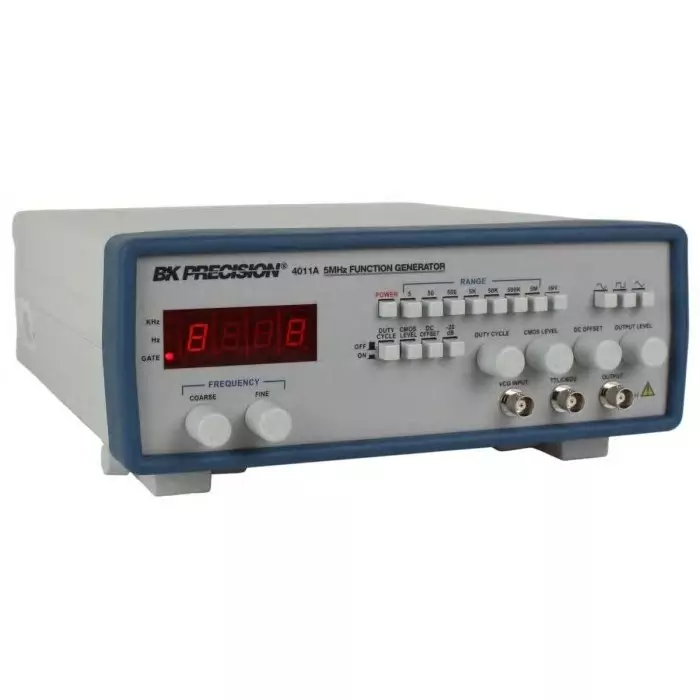

| Type of Product | Function Generator |
| Weight | 1.8 Kg |
| Dimension | 298 x 264 x 114mm |
| Height | 114mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Function Generator |
Weight |
1.8 Kg |
Dimension |
298 x 264 x 114mm |
Height |
114mm |
Width |
264mm |
Country of Origin |
Taiwan, Province Of China |
Output Impedance |
50Ω |
Length |
298mm |
Input Impedance |
10 kΩ |
Name of Manufacturer/Packer/Importer |
BK PRECISION |
Manufacturer Part Number |
BK4011A |
Attenuation |
-20dB |
Maximum Frequency Range (Square, Pulse and Arbitrary Waveform) |
5MHz |
Maximum Frequency Range Triangle/Saw |
5MHz |
Minimum Frequency Range (Triangle/Saw) |
0.5Hz |
Maximum Frequency Range (Triangle/Saw) |
5MHz |
Output Amplitude |
20V Pk-Pk |
Frequency Range Square Pulse and Arbitrary Waveform |
0.5 Hz → 5 MHz |
Minimum Frequency Range Triangle/Saw |
0.5Hz |
Frequency Range (Square, Pulse and Arbitrary Waveform) |
0.5 Hz → 5 MHz |
Maximum Frequency Range Sinewave |
5MHz |
Maximum Frequency Range (Sinewave) |
5MHz |
Minimum Frequency Range Square Pulse and Arbitrary Waveform |
0.5 Hz |
Minimum Frequency Range (Sinewave) |
0.5Hz |
Maximum Frequency Range Square Pulse and Arbitrary Waveform |
5MHz |
Minimum Frequency Range (Square, Pulse and Arbitrary Waveform) |
0.5 Hz |
Minimum Frequency Range Sinewave |
0.5Hz |
Time Base Accuracy |
±10ppm |
CMOS Output Level |
4 → 14V Pk-Pk |
TTL Output Level |
0.8 → 2.4V |
