| Model No | NSB075N.200.R380 |

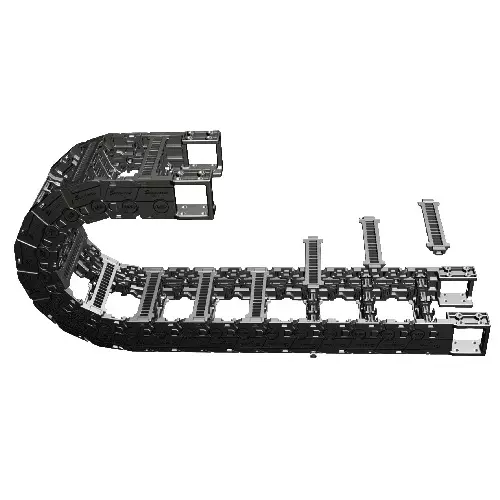

| Type of Product | Cable Drag Sabin N Type Chain Both Side Open |
| Application | Gantry Robot, Machining Center, Textile Machine, Welding Machine, Feeder Unit, Assembly Loader, Woodworking Machines, Lathes, Fabric Machines, etc. |
| Height | Moving 904 |
Model No |
NSB075N.200.R380 |
Type of Product |
Cable Drag Sabin N Type Chain Both Side Open |
Application |
Gantry Robot, Machining Center, Textile Machine, Welding Machine, Feeder Unit, Assembly Loader, Woodworking Machines, Lathes, Fabric Machines, etc. |
Height |
Moving 904 |
Country of Origin |
India |
Length |
1 m |
Bending Radius |
380 mm |
Name of Manufacturer/Packer/Importer |
Navkar Electric |
Temperature Range |
-40° C to +130° C |
Cat No |
NSB075N.200 |
Installation |

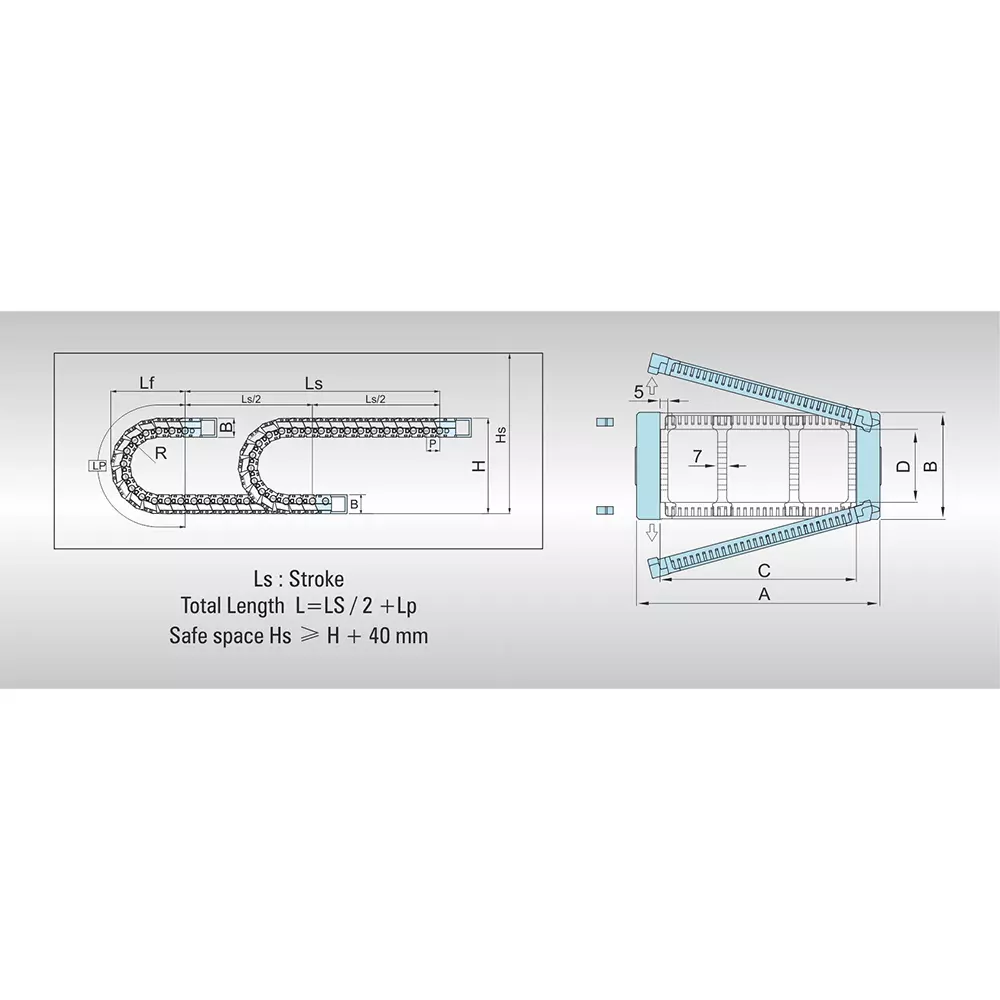

NSB075N Curve above = max. 6 m Curve below = max. 100 m (045N & 060N) = max. 120 m (075N) Side mounted, Unsupported = max. 2.5 to 3.0m |
Speed |
15 m/sec |
Inner Height |
78 mm |
Inner Width |
200 mm |
Outer Height |
108 mm |
Outer Width |
240 mm |
Loop Length |
1775 |
Chain Material |
Glass fibre reinforced Polyamide, UL 94-HB |
Projection Length |
Loof 715 |
Noise (db) |
30 dB (DIN EN 61672-1) |
