| Model No | ST095N.125.R230 |

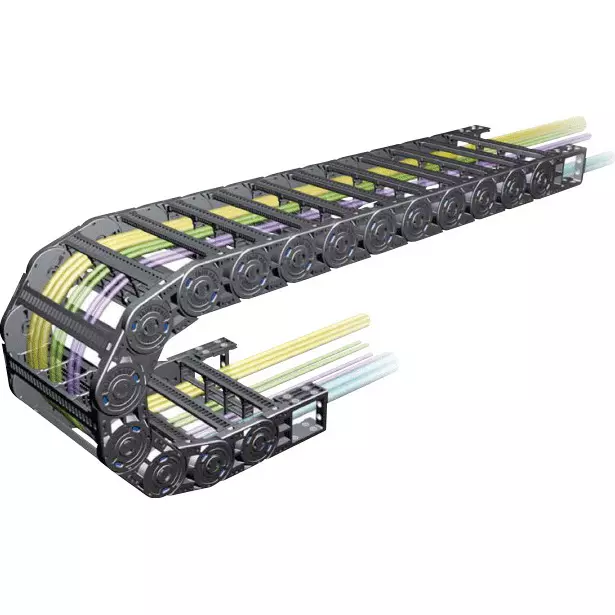

| Type of Product | Cable Drag Shift N Type Chain Both Side Open Separated Side Band |
| Application | Gantry Robot, Machine Center, Textile Machine, Welding Machine, Wood Work Machine and Fabric Machine |
| Height | Moving 542 |
Model No |
ST095N.125.R230 |
Type of Product |
Cable Drag Shift N Type Chain Both Side Open Separated Side Band |
Application |
Gantry Robot, Machine Center, Textile Machine, Welding Machine, Wood Work Machine and Fabric Machine |
Height |
Moving 542 |
Country of Origin |
India |
Length |
1 m |
Bending Radius |
230 mm |
Name of Manufacturer/Packer/Importer |
Navkar Electric |
Temperature Range |
-30° C to +130° C |
Cat No |
ST095N.125 |
Installation |
ST095N Curve above = max. 6 m Curve below = max. 100 m Side mounted, Unsupported = max. 3 m |
Speed |
10 m/sec |
Inner Height |
56 mm |
Inner Width |
125 mm |
Outer Height |
82 mm |
Outer Width |
163 mm |
Loop Length |
1110 |
Chain Material |
Glass fibre reinforced Polyamide, UL 94-HB |
Projection Length |
Loof 459 |
Noise (db) |
40 dB (DIN EN 61672-1) |
Pin Type |
Hinged Pin |
