| Type of Product | N-Channel MOSFET |
| Height | 1 mm |
| Width | 1.4 mm |
| Country of Origin | United Kingdom |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
N-Channel MOSFET |
Height |
1 mm |
Width |
1.4 mm |
Country of Origin |
United Kingdom |
Pack of |
25 Pcs |
Mounting Type |
Surface Mount |
Maximum Operating Temperature |
+150°C |
Minimum Operating Temperature |
-55°C |
Length |
3.05 mm |
Name of Manufacturer/Packer/Importer |
Diodes Zetex Semiconductors Limited |
Package Type |

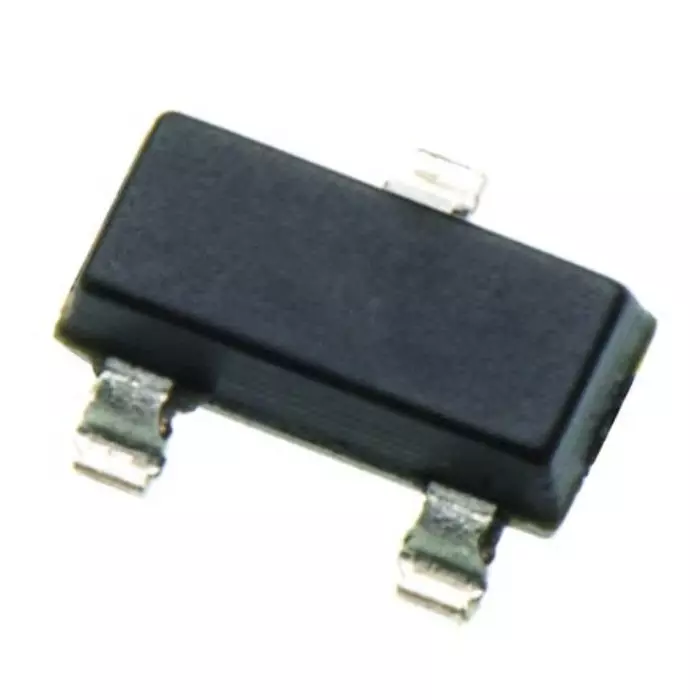

SOT-23 |
Pin Count |
3 |
Manufacturer Part Number |
ZXM61N03FTA |
Continuous Drain Current |
1.4 A (Max.) |
Drain Source Voltage |
30 V (Max.) |
Channel Type |
N |
Number of Elements Per Chip |
1 |
Channel Mode |
Enhancement |
Transistor Material |
Si |
Maximum Drain Source Resistance |
300 mΩ |
Maximum Gate Source Voltage |
-20 V, +20 V |
Minimum Gate Threshold Voltage |
1V |
Typical Gate Charge @ Vgs |
4.1 nC @ 10 V |
Maximum Power Dissipation |
806 mW |
Transistor Configuration |
Single |
