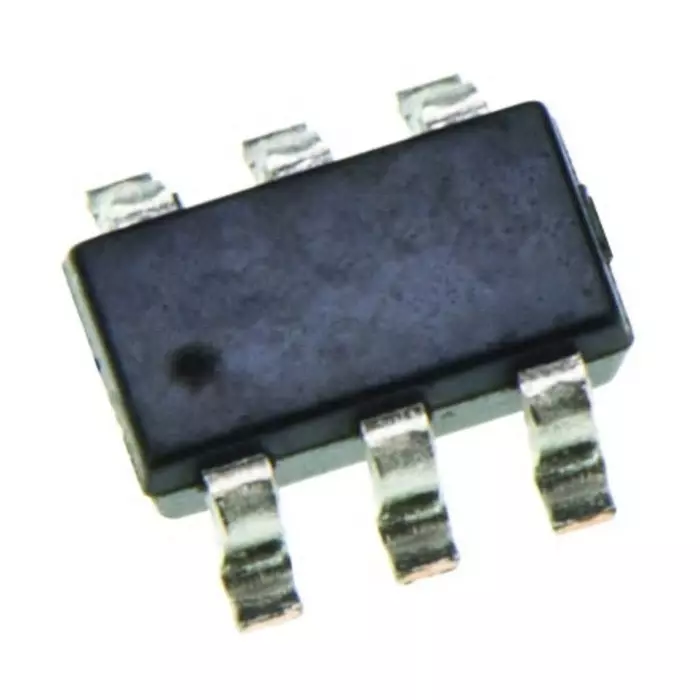

| Type of Product | AND Schmitt Trigger Logic Gate |
| Dimension | 3.1 x 1.7 x 1.3 mm |
| Height | 1.3 mm |
| Width | 1.7 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
AND Schmitt Trigger Logic Gate |
Dimension |
3.1 x 1.7 x 1.3 mm |
Height |
1.3 mm |
Width |
1.7 mm |
Country of Origin |
China |
Pack of |
100 Pcs |
Mounting Type |
Surface Mount |
Input Type |
Schmitt Trigger |
Maximum Operating Temperature |
+125°C |
Minimum Operating Temperature |
-40°C |
Length |
3.1 mm |
Name of Manufacturer/Packer/Importer |
Diodes Zetex Semiconductors Limited |
Package Type |
SOT-25 |
Pin Count |
5 |
Output Type |
Push-Pull |
Minimum Operating Supply Voltage |
2 V |
Maximum Operating Supply Voltage |
5.5 V |
Manufacturer Part Number |
74AHC1G08W5-7 |
No. of Elements |
1 |
Logic Function |
AND |
Number of Inputs Per Gate |
2 |
Schmitt Trigger Input |
Yes |
Maximum Propagation Delay Time at Maximum CL |
10.5ns |
Propagation Delay Test Condition |
50pF |
Maximum Low Level Output Current |
4 mA |
Logic Family |
AHC |
Maximum High Level Output Current |
-8mA |
