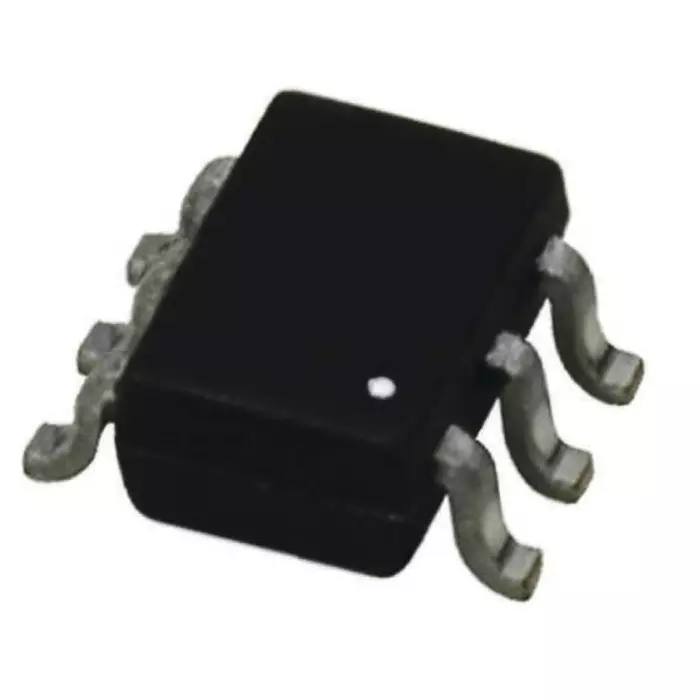

| Type of Product | Inverter IC |
| Dimension | 2.2 x 1.35 x 1 mm |
| Height | 1 mm |
| Width | 1.35 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Inverter IC |
Dimension |
2.2 x 1.35 x 1 mm |
Height |
1 mm |
Width |
1.35 mm |
Country of Origin |
China |
Pack of |
3000 Pcs |
Mounting Type |
Surface Mount |
Maximum Operating Temperature |
+125°C |
Minimum Operating Temperature |
-40°C |
Length |
2.2 mm |
Name of Manufacturer/Packer/Importer |
Diodes Zetex Semiconductors Limited |
Package Type |
SOT-353 |
Pin Count |
5 |
Output Type |
Push-Pull |
Minimum Operating Supply Voltage |
2 V |
Maximum Operating Supply Voltage |
5.5 V |
Manufacturer Part Number |
74AHC1G04SE-7 |
Logic Function |
Inverter |
Number of Elements Per Chip |
1 |
Schmitt Trigger Input |
No |
Maximum Propagation Delay Time at Maximum CL |
14.5 ns @ 50 pF |
Propagation Delay Test Condition |
50pF |
Maximum Low Level Output Current |
8 mA |
Logic Family |
HC |
Maximum High Level Output Current |
-8mA |
