Ships within 90 days
View
View
View
View

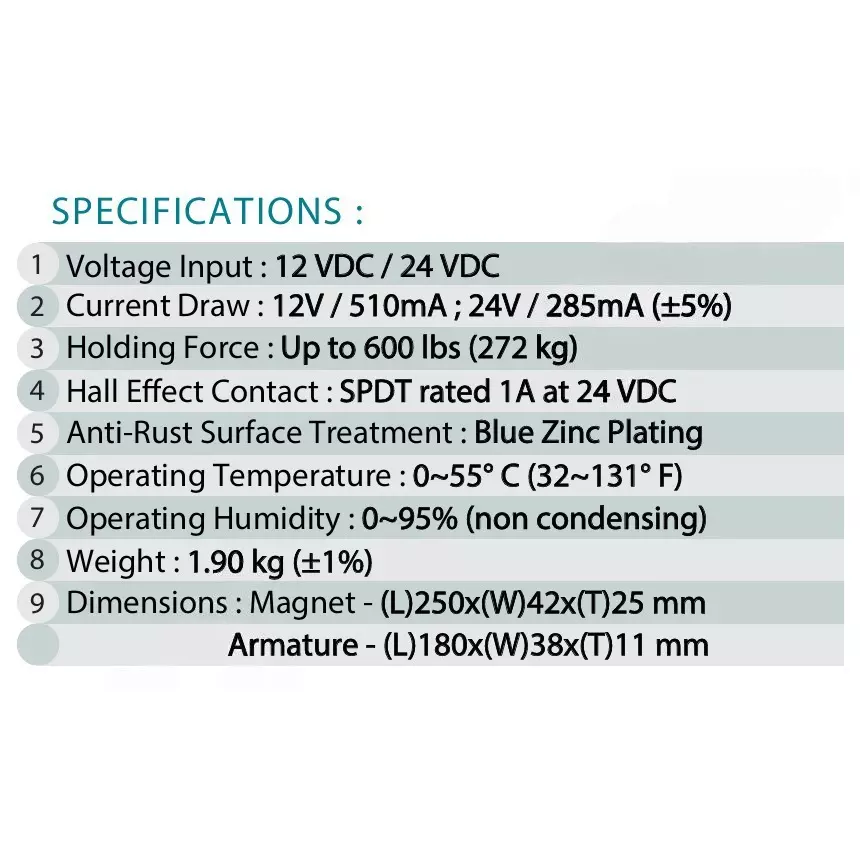

| Model No | EML-BEL/600-LED |
| Type of Product | Electromagnetic Lock |
| Weight | 1.90 Kg (±1%) |
| Dimension | Magnet: (L) 250 x (W) 42 x (T) 25 mm, Armature - (L) 180 x (W) 38 x (T) 11 mm |
Model No |
EML-BEL/600-LED |
Type of Product |
Electromagnetic Lock |
Weight |
1.90 Kg (±1%) |
Dimension |
Magnet: (L) 250 x (W) 42 x (T) 25 mm, Armature - (L) 180 x (W) 38 x (T) 11 mm |
Type |
With LED |
Country of Origin |
India |
Operating Temperature |
0-55°C (32-131°F) |
Input Voltage |
12/24 V DC |
Surface Treatment |
Blue Zinc Plating |
Name of Manufacturer/Packer/Importer |
ACE CONTROLTECH SYSTEM |

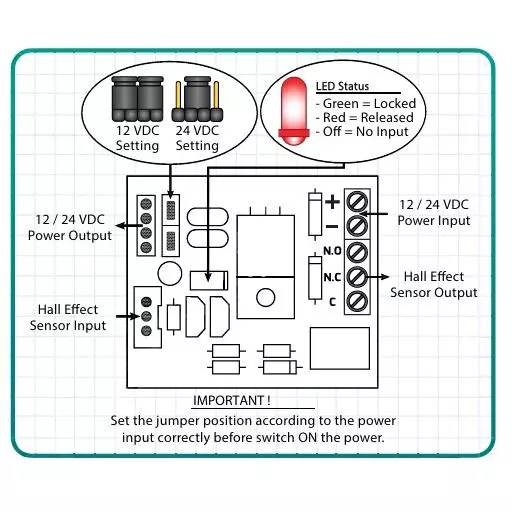

Hall Effect Type |
Contact: SPDT Rated 1 A at 24 V DC |
Holding force |
Up to 272 Kg |
Current draw |
12V / 510 mA; 24 V / 285 mA (±5%) |
Operating Humidity |
0~95% (Non Condensing) |
