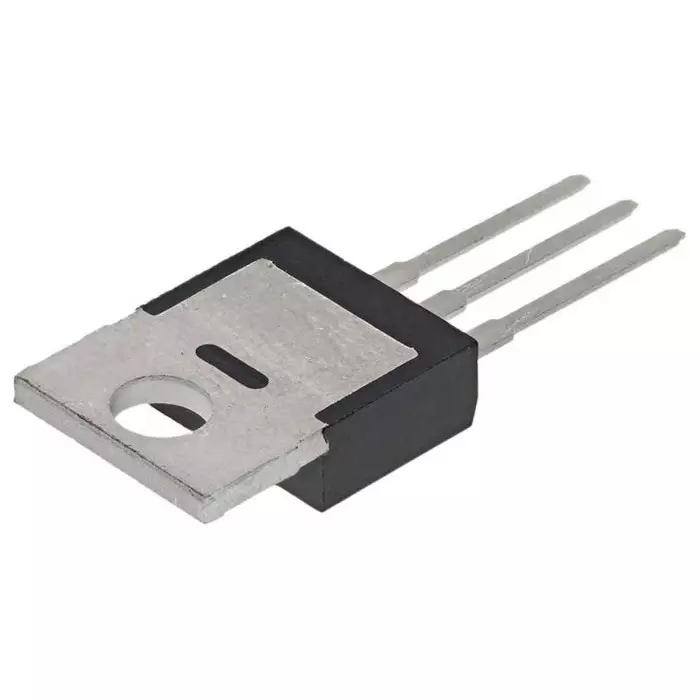

| Type of Product | TRIAC |
| Dimension | 10.36x4.67x15.35 mm |
| Height | 15.35 mm |
| Width | 4.67 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
TRIAC |
Dimension |
10.36x4.67x15.35 mm |
Height |
15.35 mm |
Width |
4.67 mm |
Country of Origin |
Thailand |
Pack of |
10 Pcs |
Mounting Type |
Through Hole |
Maximum Operating Temperature |
+125°C |
Minimum Operating Temperature |
-40°C |
Length |
10.36 mm |
Name of Manufacturer/Packer/Importer |
Fagor Electronica |
Package Type |
TO-220AB |
Pin Count |
3 |
Product Code |
1231495 |
Repetitive Peak Off-State Current |
2 mA |
Repetitive Peak Forward Blocking Voltage |
600V |
Repetitive Peak Reverse Voltage |
600V |
Maximum Gate Trigger Current |
50 mA |
Peak On-State Voltage |
1.55V |
Maximum Gate Trigger Voltage |
1.3V |
Maximum Holding Current |
50 mA |
Rated Average On-State Current |
25A |
Manufacturer Part Number |
FT2516MH TU |
