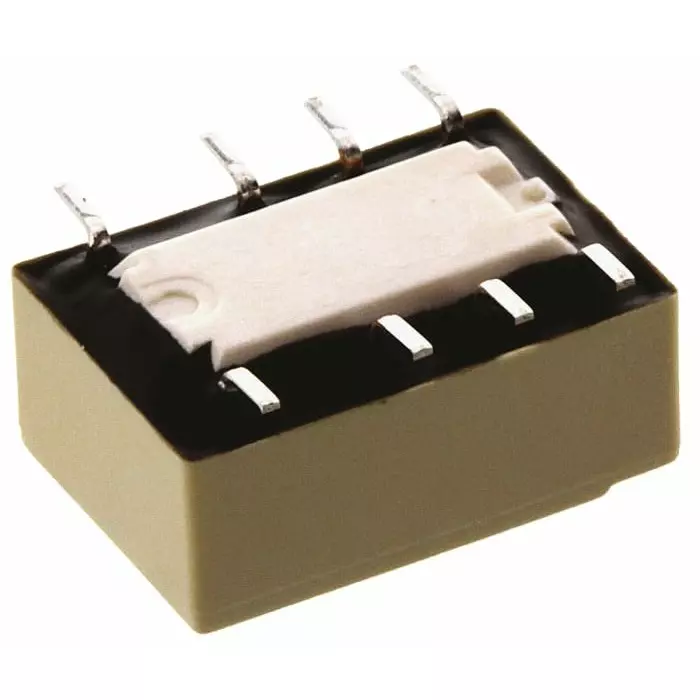

| Type of Product | Signal Relay |
| Application | Signal |
| Depth | 7.2 mm |
| Height | 5.45 mm |
Type of Product |
Signal Relay |
Application |
Signal |
Depth |
7.2 mm |
Height |
5.45 mm |
No. of Pole |
2 |
Country of Origin |
United Kingdom |
Mounting Type |
Surface Mount |
Terminal Type |
Surface Mount |
Contact Configuration |
DPDT |
Coil Voltage |
4.5 V DC |
Contact Material |
Gold Plated |
Maximum Operating Temperature |
+85°C |
Minimum Operating Temperature |
-40°C |
Length |
10.6 mm |
Series |
FTR-B3 |
Coil Resistance |
145Ω |
Name of Manufacturer/Packer/Importer |
Fujitsu |
Product Code |
7903307 |
Manufacturer Part Number |
FTR-B3GA4,5Z-B10 |
Switching Current |
2A |
Maximum Switching Current DC |
8.3333333333333329E-2 |
Maximum Switching Voltage DC |
220 V DC |
Maximum Switching Current AC |
8.3333333333333329E-2 |
Isolation Coil To Contact |
1.5kV AC |
Maximum Switching Power DC |
30 W |
Maximum Switching Power AC |
62.5VA |
Coil Power Consumption |
140mW |
Latching |
No |
Maximum Switching Voltage AC |
250 V AC |
Life Expectancy |
100x10³ Operations |
