| Model No | MBF-33T |

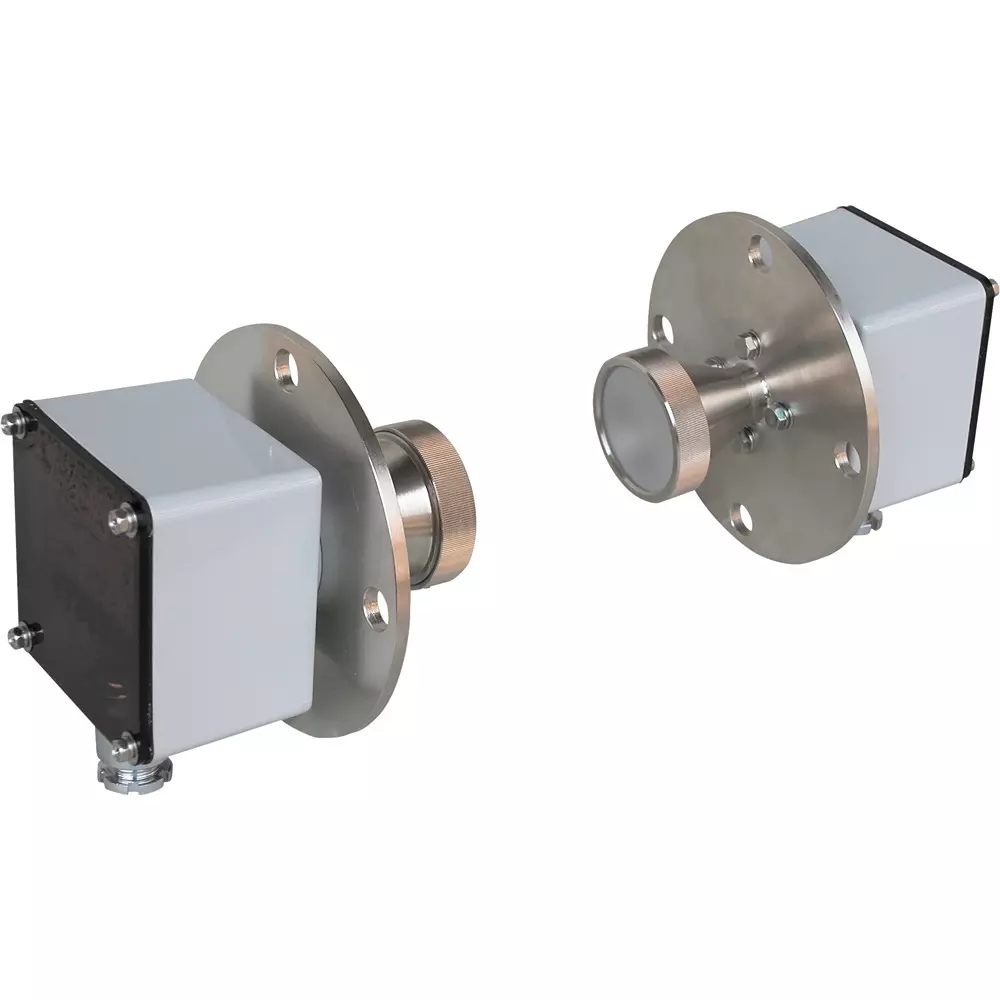

| Type of Product | Radio Wave Detector Transmitter |
| Protection Class | IP64 |
| Type | transmitter |
Model No |
MBF-33T |
Type of Product |
Radio Wave Detector Transmitter |
Protection Class |
IP64 |
Type |
transmitter |
Country of Origin |
Japan |
Monotaro ID |
58766840 |
Shock Resistance |
196m/s2(20G), 3 times each in X, Y, and Z directions |
Vibration Resistance |
10 to 55Hz, double amplitude 1.5mm, 2 hours each in X, Y, and Z directions |
Withstand voltage (V) |
AC1,500 for 1 minute (between power supply and output contacts and case) |
Power Supply Voltage |
AC 100 to 230 V (50/60Hz) |
Case Material |
Body: Aluminum die-cast, Cover: Acrylic |
Control Output |
1C relay contact, relay energized when receiving radio waves (AC250V 4A, DC30V 3A, cosΦ=1) |
Import Country |
Direct Import from Japan |
Power Consumption |
3.2 VA or less |
Response Time |
Minimum output response time: 0.1s |
Name of Manufacturer/Packer/Importer |
Hokuyo Electric Co., Ltd. |
Analog Output |
DC voltage output (MAX approx. 10V) proportional to the amount of received waves |
Operation Ambient Temperature (°C) |
-10 to +55 (no freezing) |
Operating Ambient Humidity |
45 to 85 % RH (but no freezing) |
Detection Distance (m) |
5 (Maximum reach: Reference value 50, 10 when using adapter) *At installation distances of 2.6 or less, the input level becomes strong and detection may not be possible depending on the type of dust. In this case, insert the adapter (included) between the receiver body and the flange with antenna. |
Indicator Lamp |
POWER (green) |
Insulation Resistance (MOhm) |
20 or more (between power supply and output contacts and case) by 500V megger |
Specifications |
●Time limit: Set the output ON delay time, approximately 0.1 to 10 seconds ●Oscillation output: 10mW or less |
Wave Type |
Microwave 24.15GHz |
