| Model No | BRC-G2AR |

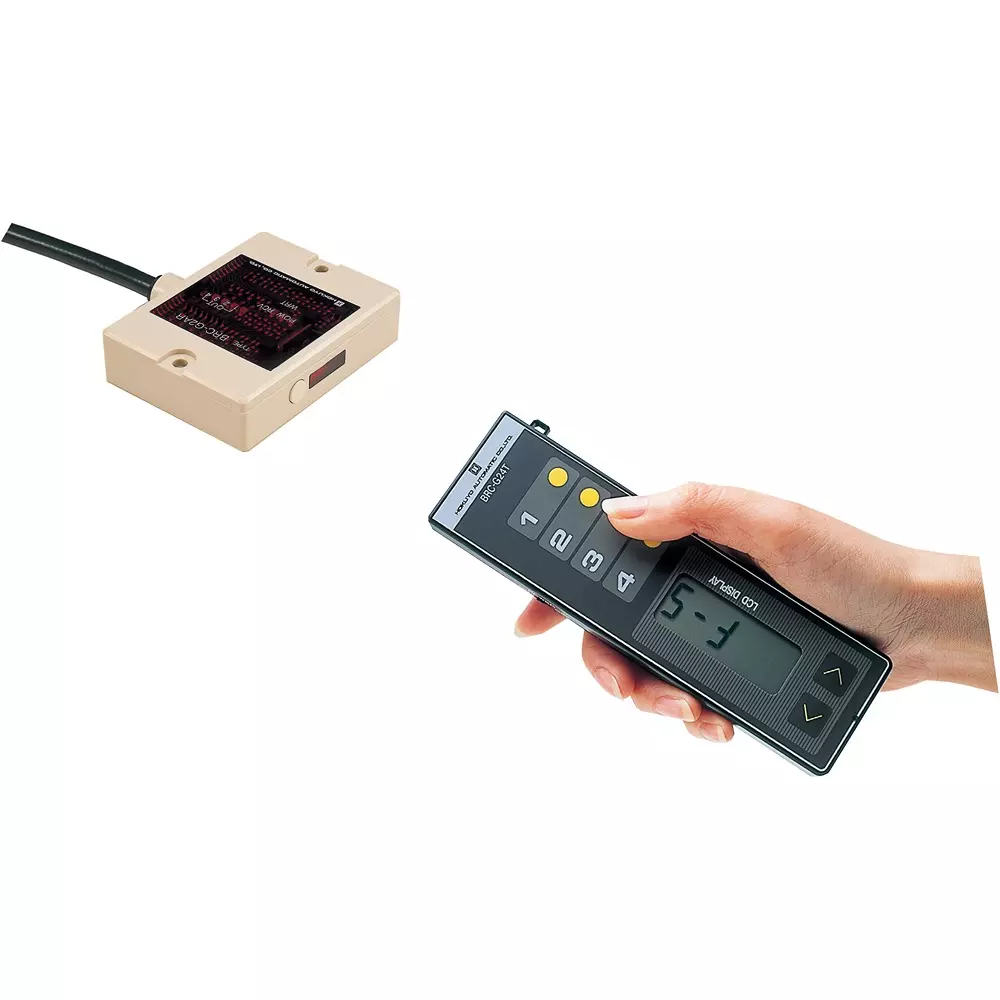

| Type of Product | Industrial Optical Remote Control Receiver |
| Protection Class | IP66 (IEC standard) |
| Type | 4-point output, head-on type |
Model No |
BRC-G2AR |
Type of Product |
Industrial Optical Remote Control Receiver |
Protection Class |
IP66 (IEC standard) |
Type |
4-point output, head-on type |
Country of Origin |
Japan |
Monotaro ID |
58765546 |
Ambient Illumination to Use (Lx) |
10,000 or less (fluorescent lamps/mercury lamps) |
Positioning Angle |
Left/right direction ±45°, upward direction 10°, downward direction 40° |
Power Supply Voltage |
DC24 ±20% (ripple 10% or less) |
Connection Type |
Lead wire type (2m long, with terminal connector) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Hokuyo Electric Co., Ltd. |
Operation Ambient Temperature (°C) |
-10 to +50 |
Operating Ambient Humidity |
45 to 85 % RH |
Specifications |
F-number registration: Set and register on the transmitter |
Reception method |
FSK modulation, output valid when inverted code matches |
Light receiving element |
Photodiode |
Data Output |
4 points/photocoupler isolation, open collector output (MAX. 35V, 50mA, residual voltage MAX. 1.5V) *Output only when the registered F number code matches the received F number code |
