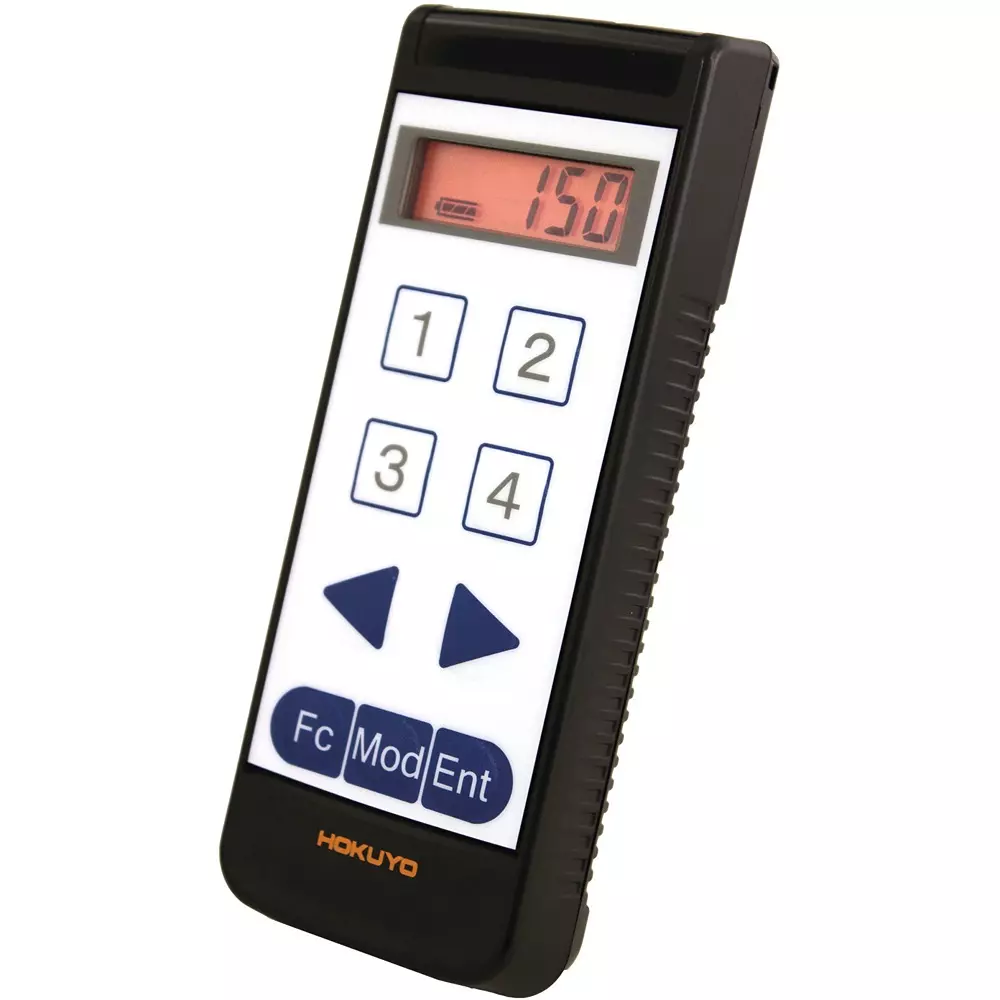

| Model No | BRS-G24T |
| Type of Product | Industrial Optical Remote Control Transmitter |
| Power Supply | AAA alkaline batteryx4 |
| Protection Class | [Key operation surface] IP64 (IEC standard), [Other] IP40 (IEC standard) |
Model No |
BRS-G24T |
Type of Product |
Industrial Optical Remote Control Transmitter |
Power Supply |
AAA alkaline batteryx4 |
Protection Class |
[Key operation surface] IP64 (IEC standard), [Other] IP40 (IEC standard) |
Country of Origin |
Japan |
Mass (g) |
110 (including batteries) |
Monotaro ID |
58765607 |
Display |
3-digit LCD display, battery indicator, transmission indicator (with backlight) |
Shock Resistance |
490m/s2 6 times each in X, Y, and Z directions |
Vibration Resistance |
Double amplitude 1.5mm 10 to 55Hz 2 hours each in X, Y, and Z directions |
Positioning Angle |
Full-width 30° |
Function |
Settings: 1. ID number setting, 2. Auto power off time setting, 3. Backlight off time setting, 4. Buzzer sound setting, 5. Double press permission setting, 6. ID number abbreviation registration setting, 7. Reset settings (return to factory defaults) |
Case Material |
Polycarbonate |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Hokuyo Electric Co., Ltd. |
No. of Keys |
4 number keys, 5 setting keys. Built-in electronic buzzer |
Battery Life |
16 hours of continuous use (when backlight is not used) |
Specifications |
●ID number setting: Maximum 999 numbers (can be set arbitrarily) ●Error detection: Two-time match method |
Emitting Element |
Infrared LED (870nm) |
Transmission distance (m) |
10 |
Operating Temperature / Humidity Range |
0 to +40°C, 45 to 85% RH. However, no freezing or condensation |
Modulation method |
Pulse position modulation (455kHz) |
