| Model No | N/MS25042-14D |
| Type of Product | Dust Cap for Plug |
| Size | 14S |
| Country of Origin | Japan |
Model No |
N/MS25042-14D |
Type of Product |
Dust Cap for Plug |
Size |
14S |
Country of Origin |
Japan |
Monotaro ID |
41198586 |
Pack of |
1 Pcs |
Applicable Connector |
N/MS3106B, N/MS3108B |
Import Country |
Direct Import from Japan |

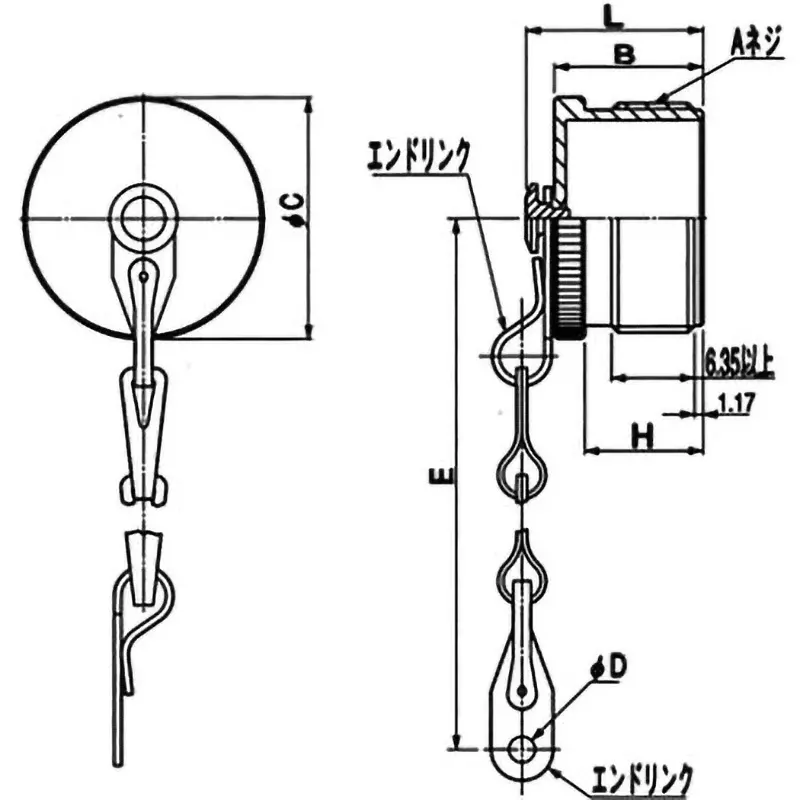

Dimensions C (mm) |
23.80 or less |
Dimensions B (mm) |
21.44 or less |
Dimensions H (mm) |
16 or more |
Dimensions E (mm) |
114.3(±21) |
Connector Type |
accessory |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
14S |
Dimension D (Φmm) |
3.96(+0.25 to -0.13) |
Dimension L (mm) |
29.36 or less |
Dimension A |
7/8-20UNEF-2A |
Insulation_Resistance (MΩ) |
5000 |
Material/Finish |
(Cap, rivet) Aluminum alloy / galvanized, (end link, punched chain) stainless steel |
Connector Shape |
Dust cap (for plug) |
