| Model No | N/MS3057-10A |
| Type of Product | Cable Clamp |
| Country of Origin | Japan |
| Monotaro ID | 34972524 |
Model No |
N/MS3057-10A |
Type of Product |
Cable Clamp |
Country of Origin |
Japan |
Monotaro ID |
34972524 |
Pack of |
1 Pcs |
Dimension B (Φmm) |
30.2(±0.8) |
Applicable Connector |
N / MS3101B, N / MS3106B, N / MS3108B and junction shell (CA2120) |
RoHS Directive |
Correspondence |

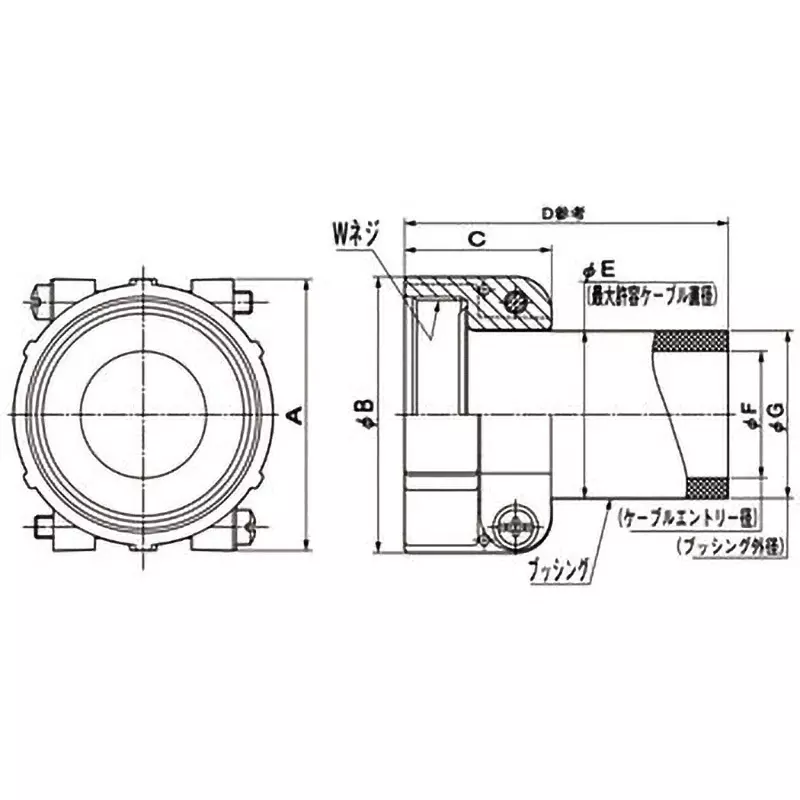

Dimensions A (mm) |
31.8(±0.8) |
Import Country |
Direct Import from Japan |
Dimensions C (mm) |
23.8(±0.8) |
Dimensions D (mm) |
68.8 (reference) |
Dimensions E (mm) |
15.9 |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Trusco Part No. |
417-8793 |
Shell Size |
For 18 |
Insulation_Resistance (MΩ) |
5000 |
Material/Finish |
(Ground nut, clamp saddle) Aluminum alloy / galvanized, (Screw) Copper alloy / galvanized, (Internal tooth washer) Steel / galvanized, (Bushing) Synthetic rubber |
Dimension F (Φmm) |
14.3 |
Dimension G |
15.6 mm |
Connector Shape |
cable clamp |
Bushing Part Number |
N/MS3420-10 |
Dimension W |
1-20UNEF-2B |
