Ships within 25 days
View
View
View
View
| Model No | N/MS25042-24D |
| Type of Product | Dust Cap for Plug |
| Size | 24 |
| Country of Origin | Japan |
Model No |
N/MS25042-24D |
Type of Product |
Dust Cap for Plug |
Size |
24 |
Country of Origin |
Japan |
Monotaro ID |
41198622 |
Pack of |
1 Pcs |
Applicable Connector |
N/MS3106B, N/MS3108B |
Import Country |
Direct Import from Japan |

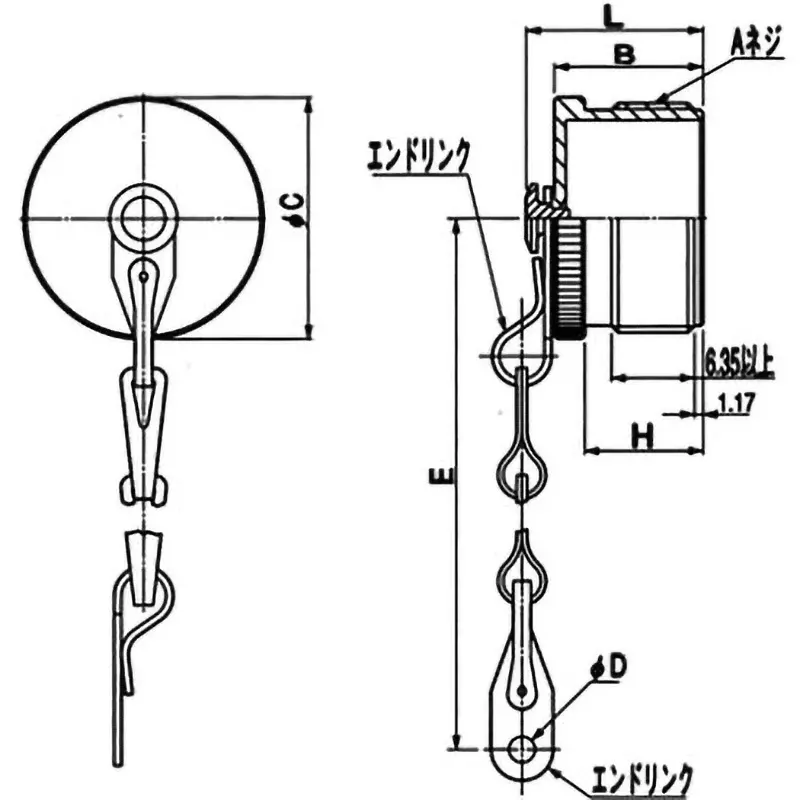

Dimensions C (mm) |
39.67 or less |
Dimensions B (mm) |
21.44 or less |
Dimensions H (mm) |
16 or more |
Dimensions E (mm) |
139.7(±21) |
Connector Type |
accessory |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
24 |
Dimension D (Φmm) |
4.75(+0.25 to -0.13) |
Dimension L (mm) |
29.36 or less |
Dimension A |
1-1/2-18UNEF-2A |
Insulation_Resistance (MΩ) |
5000 |
Material/Finish |
(Cap, rivet) Aluminum alloy / galvanized, (end link, punched chain) stainless steel |
Connector Shape |
Dust cap (for plug) |
