| Model No | N/MS25043-20D |
| Type of Product | Dust Cap for Receptacle |
| Country of Origin | Japan |
| Monotaro ID | 34972664 |
Model No |
N/MS25043-20D |
Type of Product |
Dust Cap for Receptacle |
Country of Origin |
Japan |
Monotaro ID |
34972664 |
Pack of |
1 Pcs |
RoHS Directive |
Correspondence |

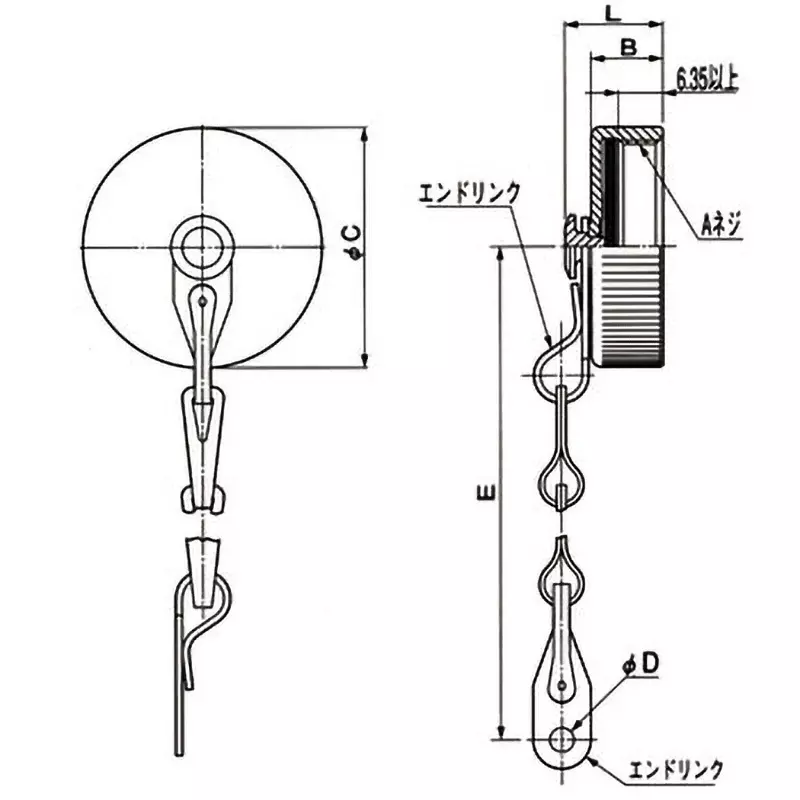

Dimensions A (mm) |
1-1/4-18UNEF-2B |
Import Country |
Direct Import from Japan |
Dimensions B (mm) |
11.91 or less |
Dimensions E (mm) |
127(±21) |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Trusco Part No. |
417-8785 |
Shell Size |
20 |
Dimension D (Φmm) |
3.56(+0.25 to -0.13) |
Dimension L (mm) |
19.05 or less |
Specifications |
Dust cap (for receptacle) |
Dimension C (Φmm) |
37.31 or less |
Material/Finish |
(Cap, rivet) Aluminum alloy / galvanized, (Gasket) Synthetic rubber, (End link, Stamped chain) Stainless steel |
Chain Length E (mm) |
127 |
Matching Connector |
N/MS3102A, N/MS3101B |
