| Model No | N/MS3057-12A |
| Type of Product | Cable Clamp |
| Country of Origin | Japan |
| Monotaro ID | 34972533 |
Model No |
N/MS3057-12A |
Type of Product |
Cable Clamp |
Country of Origin |
Japan |
Monotaro ID |
34972533 |
Pack of |
1 Pcs |

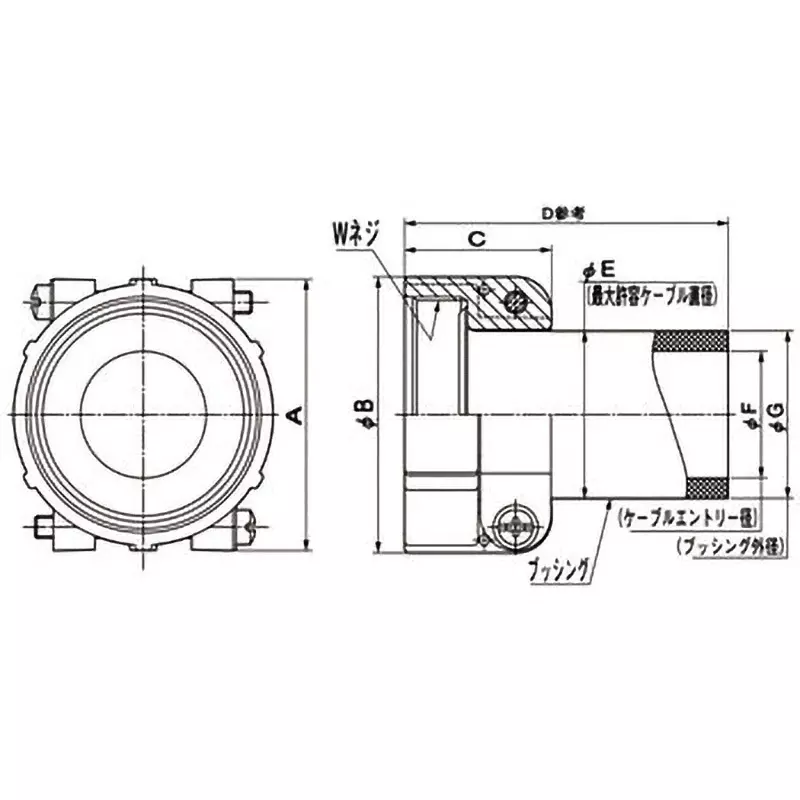

Dimension B (Φmm) |
34.9(±0.8) |
Applicable Connector |
N / MS3101B, N / MS3106B, N / MS3108B and junction shell (CA2120) |
RoHS Directive |
Correspondence |
Dimensions A (mm) |
37.3(±0.8) |
Import Country |
Direct Import from Japan |
Dimensions C (mm) |
23.8(±0.8) |
Dimensions D (mm) |
65.7 (reference) |
Dimensions E (mm) |
19 |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Trusco Part No. |
417-8807 |
Shell Size |
20, 22 |
Insulation_Resistance (MΩ) |
5000 |
Material/Finish |
(Ground nut, clamp saddle) Aluminum alloy / galvanized, (Screw) Copper alloy / galvanized, (Internal tooth washer) Steel / galvanized, (Bushing) Synthetic rubber |
Dimension F (Φmm) |
15.9 |
Dimension G |
18.8 mm |
Connector Shape |
cable clamp |
Bushing Part Number |
N/MS3420-12 |
Dimension W |
1-3/16-18UNEF-2B |
