Ships within 25 days
View
View
View
View
| Model No | N/MS3057-24A |
| Type of Product | Cable Clamp |
| Country of Origin | Japan |
| Monotaro ID | 34972567 |
Model No |
N/MS3057-24A |
Type of Product |
Cable Clamp |
Country of Origin |
Japan |
Monotaro ID |
34972567 |
Pack of |
1 Pcs |

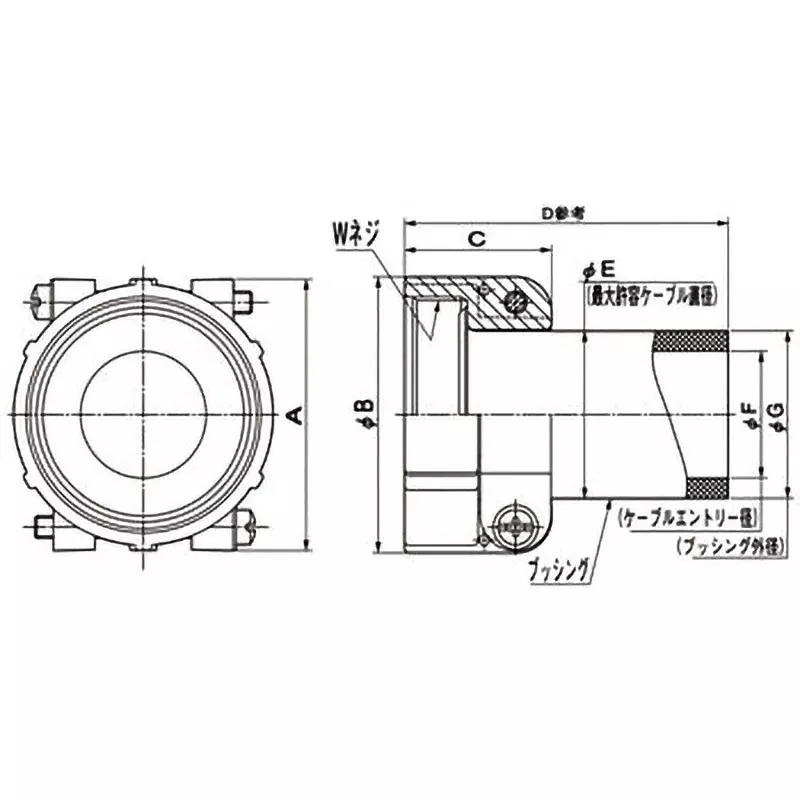

Dimension B (Φmm) |
56.4(±0.8) |
Applicable Connector |
N / MS3101B, N / MS3106B, N / MS3108B and junction shell (CA2120) |
RoHS Directive |
Correspondence |
Dimensions A (mm) |
57.9(±0.8) |
Import Country |
Direct Import from Japan |
Dimensions C (mm) |
29.4(±0.8) |
Dimensions D (mm) |
60.6 (reference) |
Dimensions E (mm) |
34.9 |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Shell Size |
For 36 |
Insulation_Resistance (MΩ) |
5000 |
Material/Finish |
(Ground nut, clamp saddle) Aluminum alloy / galvanized, (Screw) Copper alloy / galvanized, (Internal tooth washer) Steel / galvanized, (Bushing) Synthetic rubber |
Dimension F (Φmm) |
23.8 |
Dimension G |
34.7 mm |
Connector Shape |
cable clamp |
Bushing Part Number |
N/MS3420-20，-24 |
Dimension W |
2-18UNS-2B |
