| Type of Product | Original Plug |
| Standard | RoHS compliant, UL standard (File No. E103202) |
| No. of Pole | 3-Pole |
| Country of Origin | Japan |
Type of Product |
Original Plug |
Standard |
RoHS compliant, UL standard (File No. E103202) |
No. of Pole |
3-Pole |
Country of Origin |
Japan |
Monotaro ID |
8594013 |

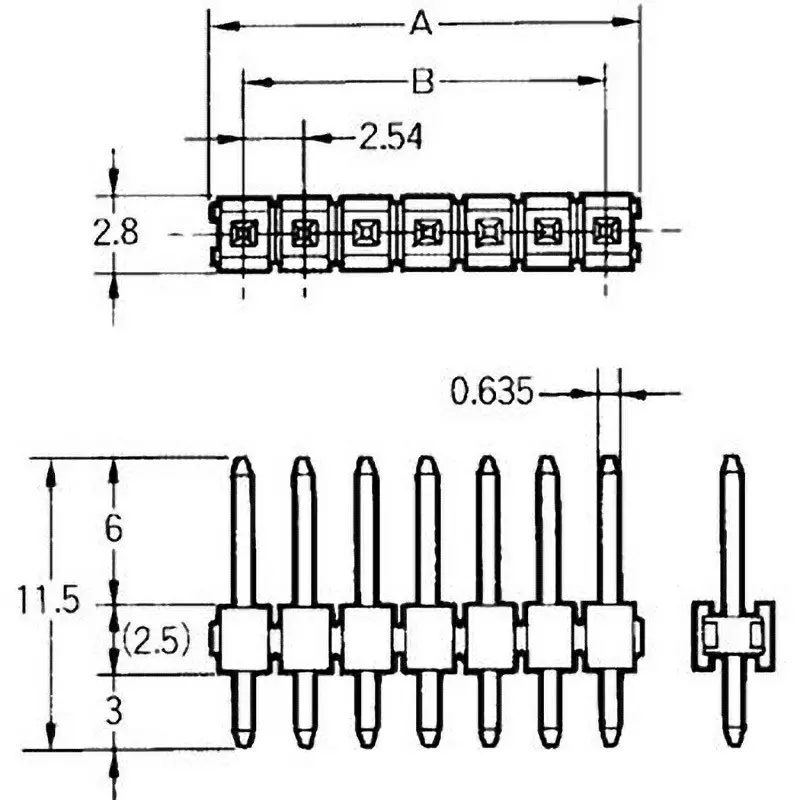

Dimension B (Φmm) |
φ5.08 mm |
Terminal Shape |
Single row type, straight terminal |
Shape |
Original plug 1 row type |
Processing (Contact Terminal Pressure Connection Part) |
Nickel base tin plating (2.0 μm) |
Processing (Contact Connection Part) |
Nickel base gold plating (0.15 μm) |
Material (Contact Terminal Pressure Connection Part) |
Brass |
Material (Foot Plate) |
Glass-filled PBT resin (UL94V-0) / Black |
Material (Contact Connection Part) |
Brass |
Rated Voltage (V) |
AC300 |
Withstand Voltage |
AC650V, 1min (leakage current 1mA or less) |
Import Country |
Direct Import from Japan |
Part No |
64-3396-13 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing in the bass) |
Manufacturer Part Number |
XG8V-0331 |
Insulation Resistance (MOhm) |
10³ or more (at 500 VDC) |
Contact Resistance (ohm) |
20 or less (20 mV or less, 100 mA or less) Value when mated with XG5M-N |
Dimension A (Φmm) |
φ7.6 mm |
