| Model No | F-810-C |
| Type of Product | Connection Protection Cover |
| Protection Class | IP66 |
| Country of Origin | Japan |
Model No |
F-810-C |
Type of Product |
Connection Protection Cover |
Protection Class |
IP66 |
Country of Origin |
Japan |
Monotaro ID |
45536897 |
Pack of |
1 Pcs |
Operating Humidity Range |
35-85%RH (no freezing) |
Heat Resistance Temperature |
(Resin) +125℃ |
Import Country |
Direct Import from Japan |
Storage Temperature Range |
-10 to 60℃ |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Trusco Part No. |
788-6012 |
Operating Temperature (c) |
-10 to +80 (including temperature rise at the connection) |
Storage Humidity Range (% RH) |
35-85 (no freezing or condensation) |
Connectable Wire (mm2) |

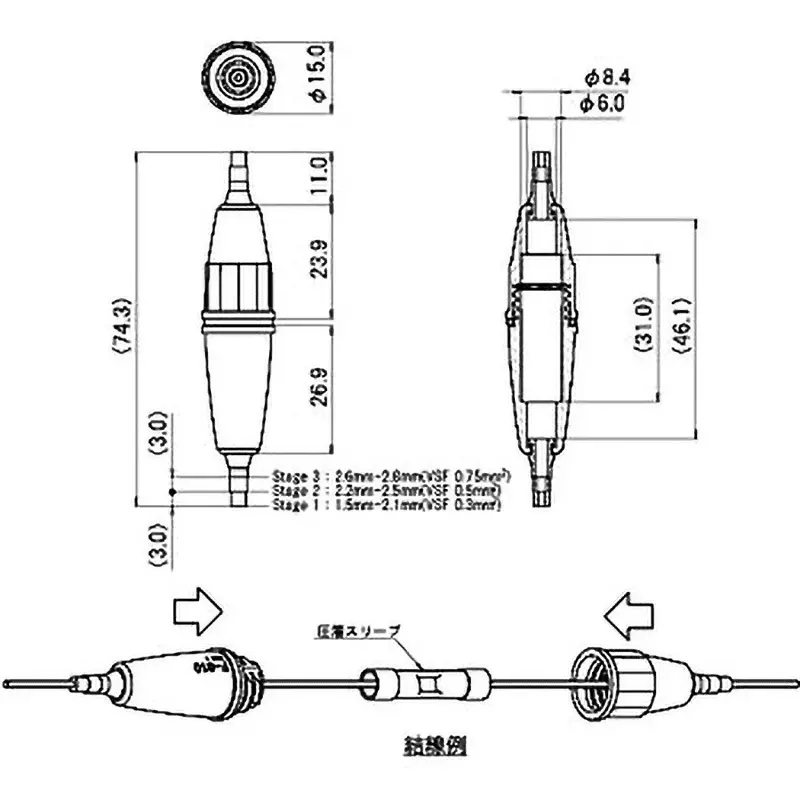

0.75 or less, finished outer diameter 1.5mm-2.8mm *Please cut the grommet according to the outer diameter of the wire. (Stepped bromet) Stage1: 1.5mm-2.1mm(VSF0.3mm <sup>2</sup> ) Stage2: 2.2mm-2.5mm(VSF0.5mm <sup>2</sup> ) Stage3: 2.6mm-2.8mm(VSF0.75mm <sup>2</sup> ) |
