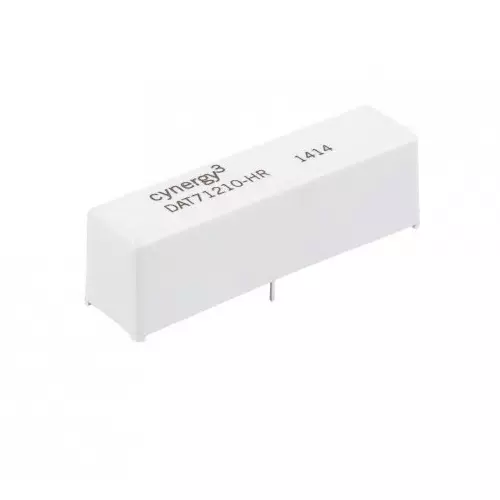

| Type of Product | PCB Mount Reed Relay |
| Dimension | 60 x 15.8 x 18.5mm |
| Depth | 15.8mm |
| Height | 18.5mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
PCB Mount Reed Relay |
Dimension |
60 x 15.8 x 18.5mm |
Depth |
15.8mm |
Height |
18.5mm |
No. of Pole |
1 |
Country of Origin |
United Kingdom |
Mounting Type |
PCB Mount |
Terminal Type |
PCB Pin |
Contact Configuration |
SP-NC |
Coil Voltage |
5V dc |
Contact Material |
Tungsten |
Contact Resistance |
250 mΩ |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-20°C |
Length |
60mm |
Operating Temperature Range |
-20 → +70°C |
Coil Resistance |
38Ω |
Name of Manufacturer/Packer/Importer |
SENSATA / CYNERGY3 |
Manufacturer Part Number |
DBT70510-HR/RS |
Maximum Switching Voltage (AC) |
1000V |
Relay Switching Classification |
General Purpose Relay |
Maximum Switching Current DC |
2 A |
Operating Time Including Bounce |
2ms |
Maximum Switching Voltage DC |
1000V |
Operating Cycle |
1000000 (50 W) operations, 1000000000 (Dry) operations |
Special Features |
High Insulation Resistance, Low Contact Resistance |
Maximum Switching Current AC |
2 A |
Isolation Coil To Contact |
17kV |
Maximum Switching Power DC |
50 W |
