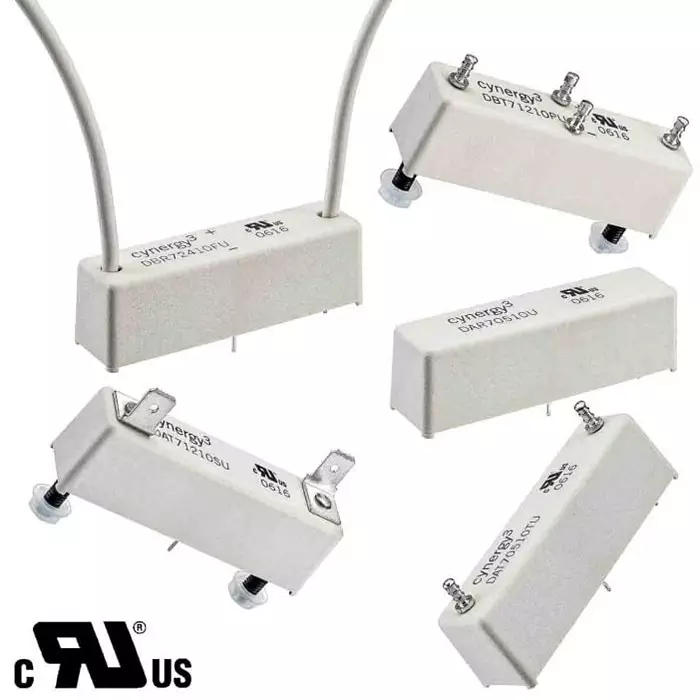

| Type of Product | Panel Mount Reed Relay |
| Dimension | 60 x 15.8 x 18.5mm |
| Depth | 15.8mm |
| Height | 18.5mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Panel Mount Reed Relay |
Dimension |
60 x 15.8 x 18.5mm |
Depth |
15.8mm |
Height |
18.5mm |
No. of Pole |
1 |
Country of Origin |
United Kingdom |
Pack of |
20 Pcs |
Mounting Type |
Panel Mount |
Terminal Type |
Wire Wrap |
Contact Configuration |
SPST |
Coil Voltage |
24V dc |
Contact Material |
Tungsten |
Contact Resistance |
250 mΩ |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-20°C |
Length |
60mm |
Operating Temperature Range |
-20 → +70°C |
Coil Resistance |
780Ω |
Name of Manufacturer/Packer/Importer |
SENSATA / CYNERGY3 |
Manufacturer Part Number |
DAT72405PU |
Maximum Switching Voltage (AC) |
7000V |
Relay Switching Classification |
General Purpose Relay |
Maximum Switching Current DC |
2 A |
Operating Time Including Bounce |
3ms |
Maximum Switching Voltage DC |
7000V |
Operating Cycle |
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles |
Special Features |
7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel Mount |
Electrical Life |
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles |
Maximum Switching Current AC |
2 A |
Isolation Coil To Contact |
17kV |
Maximum Switching Power DC |
50 W |
