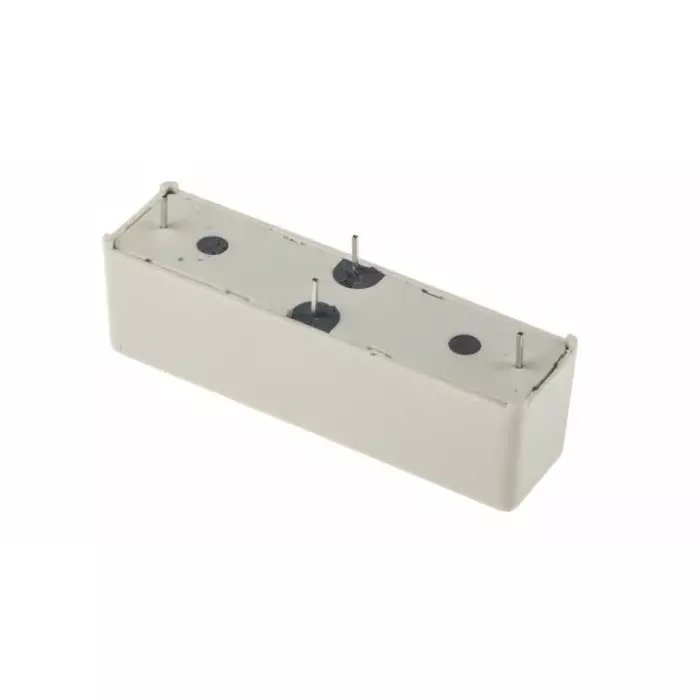

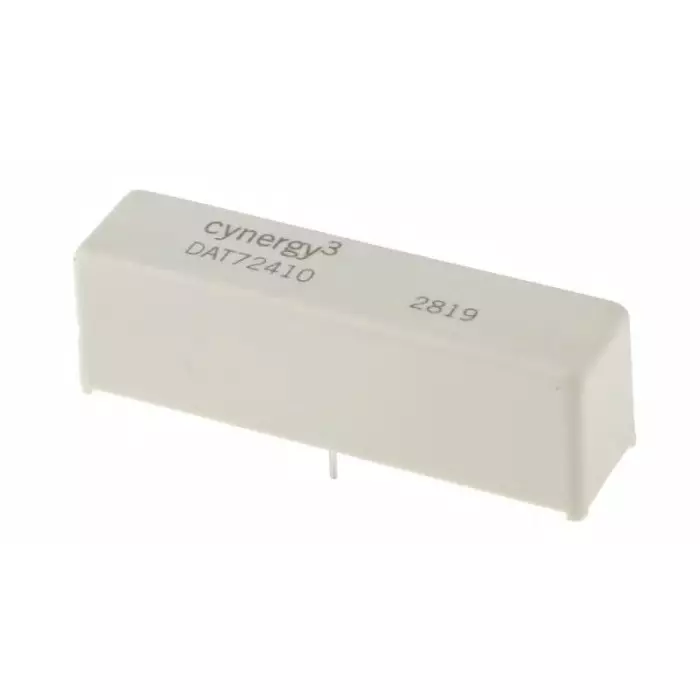

| Type of Product | Reed Relay |
| Dimension | 60x15.8x18.5 mm |
| Depth | 15.8 mm |
| Height | 18.5 mm |
Type of Product |
Reed Relay |
Dimension |
60x15.8x18.5 mm |
Depth |
15.8 mm |
Height |
18.5 mm |
Country of Origin |
China |
Pack of |
1 Pc |
Mounting Type |
PCB Mount |
Terminal Type |
Through Hole |
Contact Configuration |
SPST |
Coil Voltage |
24V DC |
Contact Material |
Tungsten |
Contact Resistance |
250 mΩ |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-20°C |
Length |
60 mm |
Operating Temperature Range |
-20 to +70°C |
Coil Resistance |
780 Ω |
Name of Manufacturer/Packer/Importer |
SENSATA / CYNERGY3 |
Product Code |
5111313 |
Manufacturer Part Number |
DAT72410 |
Maximum Switching Voltage (AC) |
7000V |
Maximum Switching Current DC |
2 A |
Operating Time Including Bounce |
3ms |
Maximum Switching Voltage DC |
7000V DC |
Operating Cycle |
1000000 (Electrical)Cycles |
Special Features |
Excellent AC Characteristics |
Maximum Switching Current AC |
2 A |
Isolation Coil To Contact |
17 kV AC/DC |
Maximum Switching Power DC |
50 W |
Maximum Switching Current (AC) |
2 A |
Maximum Switching Current (DC) |
2 A |
Maximum Switching Voltage (DC) |
7000V DC |
