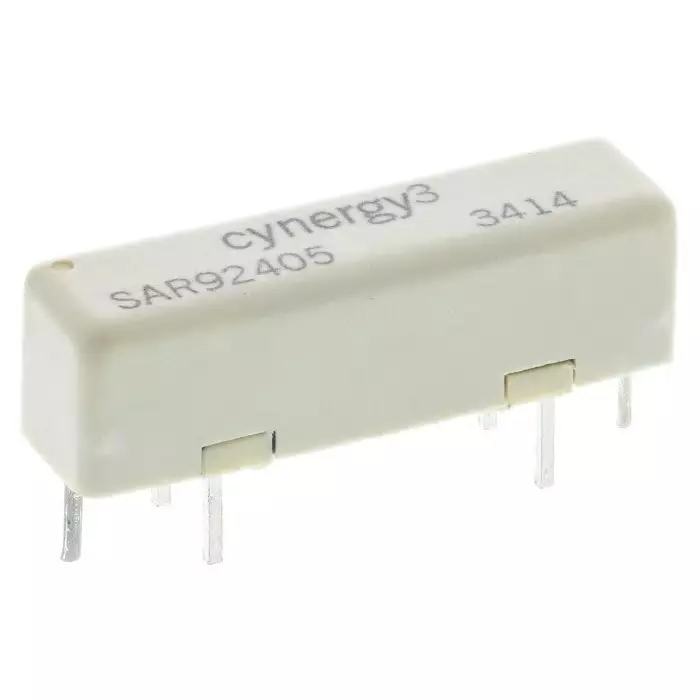

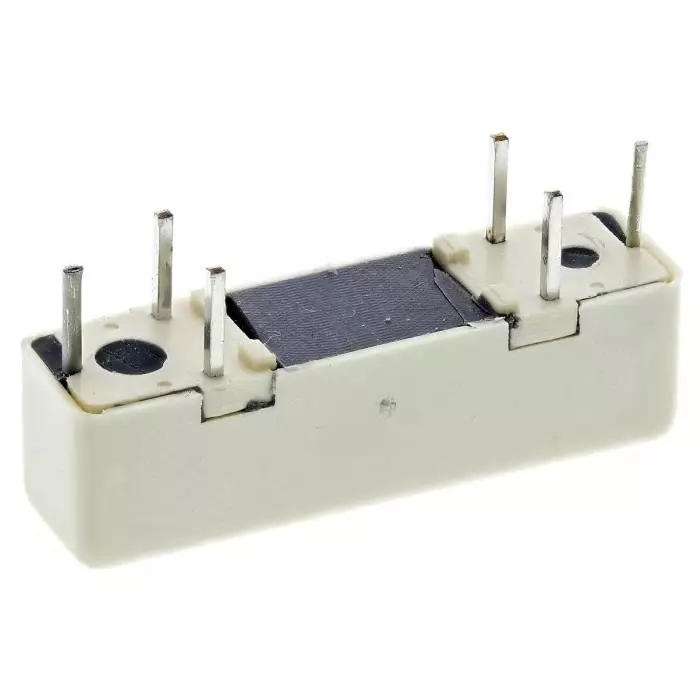

| Type of Product | PCB Mount Reed Relay |
| Dimension | 27.6 x 7.3 x 8.5mm |
| Depth | 7.3mm |
| Height | 8.5mm |
Type of Product |
PCB Mount Reed Relay |
Dimension |
27.6 x 7.3 x 8.5mm |
Depth |
7.3mm |
Height |
8.5mm |
Country of Origin |
United Kingdom |
Mounting Type |
PCB Mount |
Terminal Type |
Through Hole |
Contact Configuration |
SPST |
Coil Voltage |
24V dc |
Contact Material |
Rhodium |
Contact Resistance |
30 mΩ |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-20°C |
Length |
27.6mm |
Operating Temperature Range |
-20 → +70°C |
Coil Resistance |
1000Ω |
Name of Manufacturer/Packer/Importer |
SENSATA / CYNERGY3 |
Manufacturer Part Number |
SAR92405 |
Maximum Switching Voltage (AC) |
20V ac |
Maximum Switching Current DC |
0.5 A |
Operating Time Including Bounce |
1ms |
Maximum Switching Voltage DC |
20V dc |
Operating Cycle |
100000000 (Electrical) cycles |
Maximum Switching Current AC |
0.5 A |
Isolation Coil To Contact |
5kV ac/dc |
Maximum Switching Power DC |
10 W |
Maximum Switching Current (AC) |
0.5 A |
Maximum Switching Current (DC) |
0.5 A |
Maximum Switching Voltage (DC) |
20V dc |
