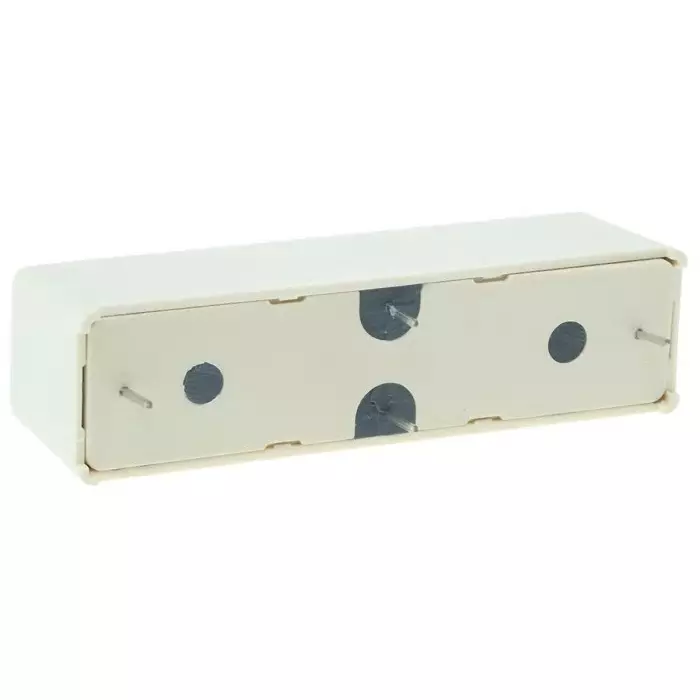

| Type of Product | PCB Mount Reed Relay |
| Dimension | 60 x 15.8 x 18.5mm |
| Depth | 15.8mm |
| Height | 18.5mm |
Type of Product |
PCB Mount Reed Relay |
Dimension |
60 x 15.8 x 18.5mm |
Depth |
15.8mm |
Height |
18.5mm |
Country of Origin |
Taiwan, Province Of China |
Mounting Type |
PCB Mount |
Terminal Type |
Through Hole |
Contact Configuration |
SPST |
Coil Voltage |
24V dc |
Contact Material |
Tungsten |
Contact Resistance |
250 mΩ |
Maximum Operating Temperature |
+70°C |
Minimum Operating Temperature |
-20°C |
Length |
60mm |
Operating Temperature Range |
-20 → +70°C |
Coil Resistance |
350Ω |
Name of Manufacturer/Packer/Importer |
SENSATA / CYNERGY3 |
Manufacturer Part Number |
DAT72415 |
Maximum Switching Voltage (AC) |
10000V ac |
Maximum Switching Current DC |
2 A |
Operating Time Including Bounce |
3ms |
Maximum Switching Voltage DC |
10000V dc |
Operating Cycle |
100000000 (Electrical) cycles |
Maximum Switching Current AC |
2 A |
Isolation Coil To Contact |
15kV ac/dc |
Maximum Switching Power DC |
50 W |
Maximum Switching Current (AC) |
2 A |
Maximum Switching Current (DC) |
2 A |
Maximum Switching Voltage (DC) |
10000V dc |
