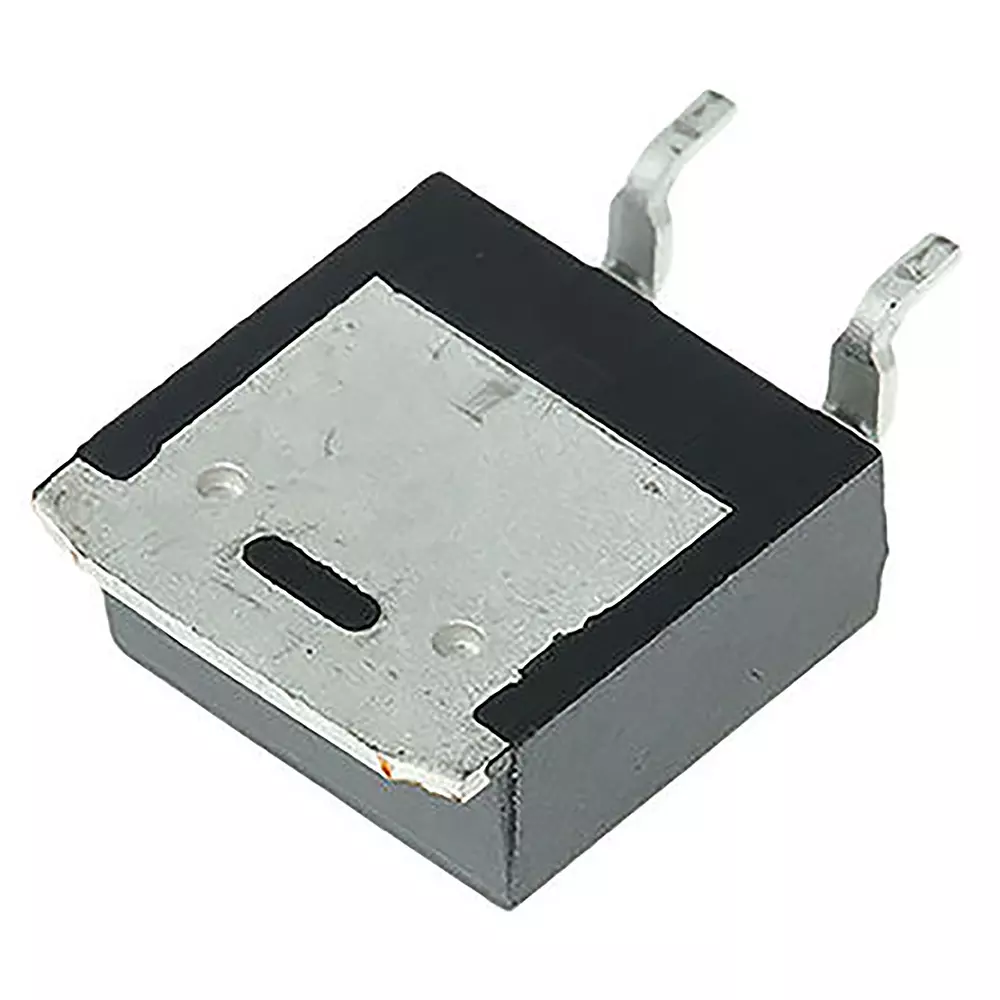

| Model No | T435-600B |
| Type of Product | TRIAC |
| Dimension | 6.6x6.2x2.4 mm |
| Height | 2.4 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
T435-600B |
Type of Product |
TRIAC |
Dimension |
6.6x6.2x2.4 mm |
Height |
2.4 mm |
Width |
6.2 mm |
Country of Origin |
USA |
Pack of |
75 Pcs |
Mounting Type |
Surface Mount |
Maximum Operating Temperature |
+125°C |
Minimum Operating Temperature |
-40°C |
Length |
6.6 mm |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Package Type |
DPAK (TO-252) |
Pin Count |
3 |
Repetitive Peak Off-State Current |
1 µA |
Surge Current Rating |
31 A |
Repetitive Peak Reverse Voltage |
600 V |
Maximum Gate Trigger Current |
35 µA |
Peak On-State Voltage |
1.56 V |
Maximum Gate Trigger Voltage |
1.3 V |
Maximum Holding Current |
35 mA |
Rated Average On-State Current |
4 A |
