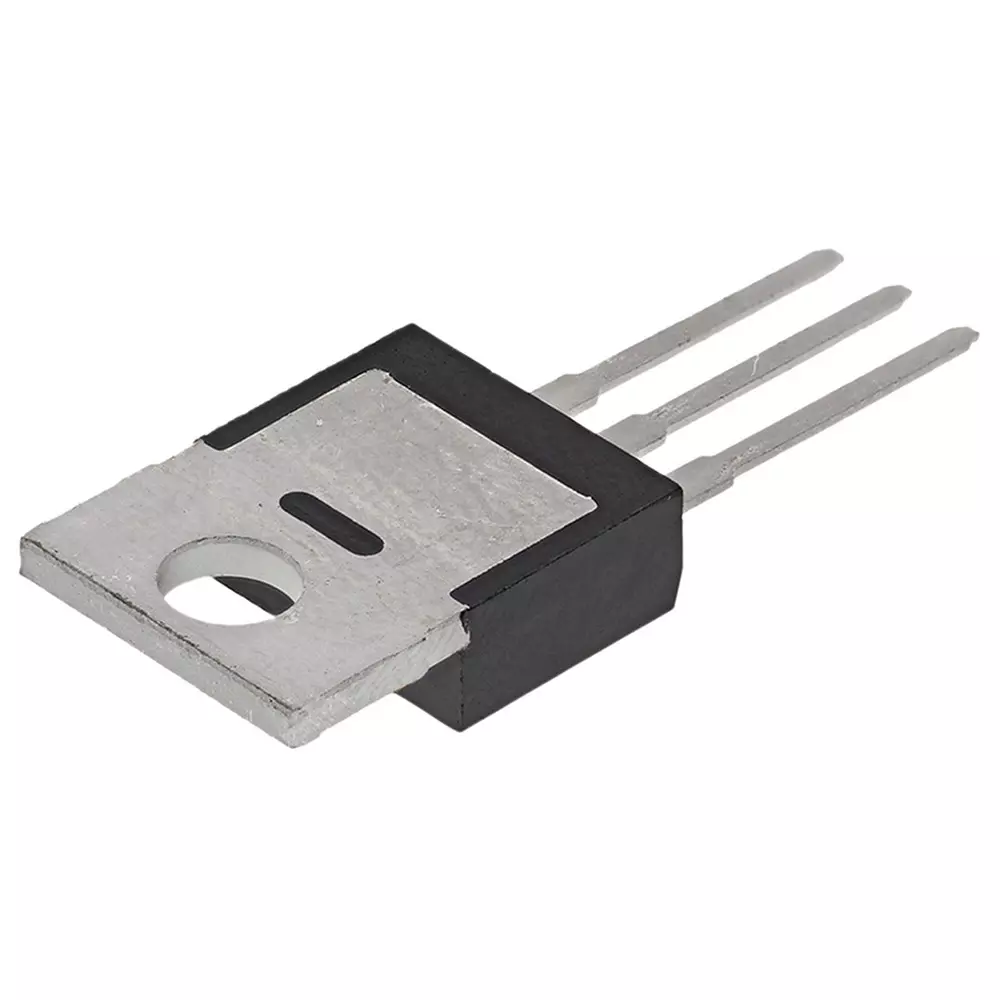

| Model No | T1635H-6I |
| Type of Product | TRIAC |
| Dimension | 10.4x4.6x15.9 mm |
| Height | 15.9 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
T1635H-6I |
Type of Product |
TRIAC |
Dimension |
10.4x4.6x15.9 mm |
Height |
15.9 mm |
Width |
4.6 mm |
Country of Origin |
USA |
Pack of |
5 Pcs |
Mounting Type |
Through Hole |
Maximum Operating Temperature |
+150°C |
Minimum Operating Temperature |
-40°C |
Length |
10.4 mm |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Package Type |
TO-220AB |
Pin Count |
3 |
Repetitive Peak Forward Blocking Voltage |
600 V |
Surge Current Rating |
168 A |
Repetitive Peak Reverse Voltage |
600 V |
Maximum Gate Trigger Current |
35 µA |
Peak On-State Voltage |
1.5 V |
Maximum Gate Trigger Voltage |
1 V |
Maximum Holding Current |
35 mA |
Rated Average On-State Current |
16 A |
