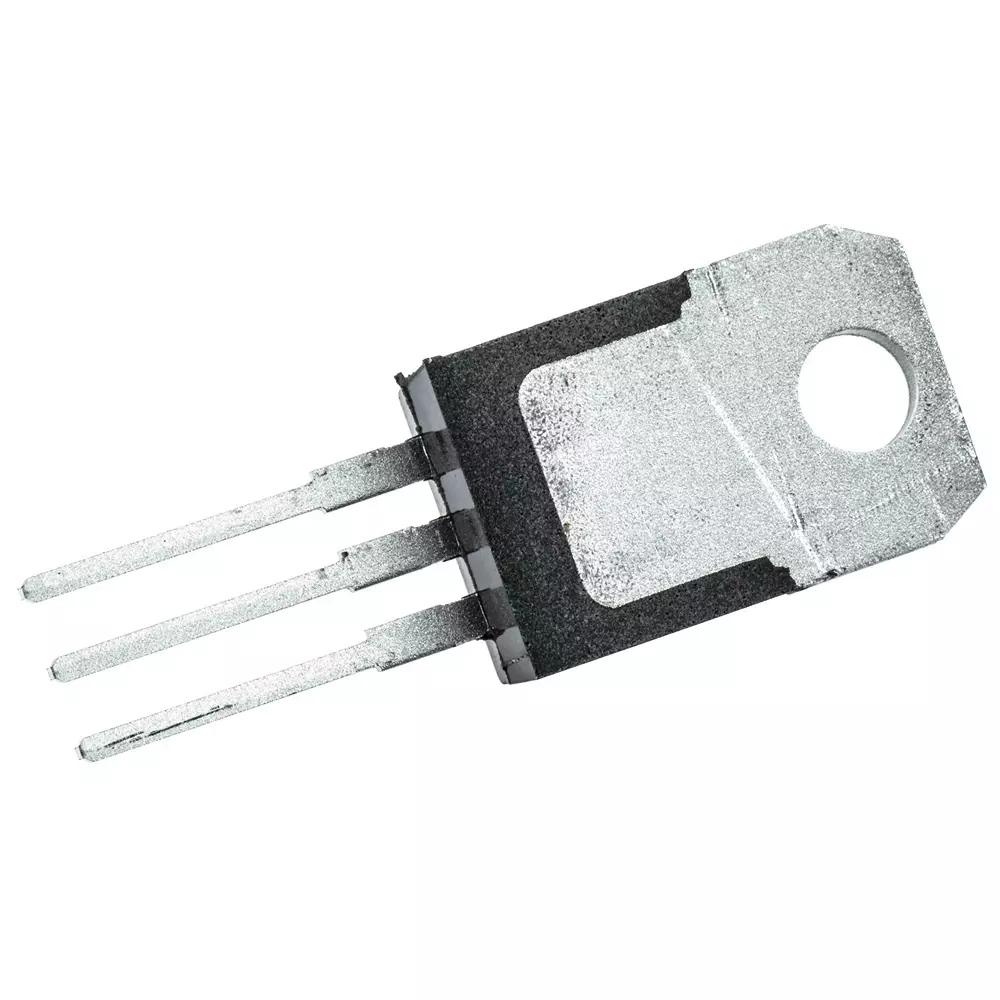

| Model No | BTA16-800BWRG |
| Type of Product | TRIAC |
| Dimension | 10.4x4.6x9.3 mm |
| Height | 9.3 mm |
Model No |
BTA16-800BWRG |
Type of Product |
TRIAC |
Dimension |
10.4x4.6x9.3 mm |
Height |
9.3 mm |
Width |
4.6 mm |
Country of Origin |
USA |
Pack of |
2 Pcs |
Mounting Type |
Through Hole |
Maximum Operating Temperature |
+125°C |
Minimum Operating Temperature |
-40°C |
Length |
10.4 mm |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Package Type |
TO-220AB |
Pin Count |
3 |
Repetitive Peak Off-State Current |
0.005 µA |
Repetitive Peak Forward Blocking Voltage |
800 V |
Surge Current Rating |
168 A |
Repetitive Peak Reverse Voltage |
800 V |
Maximum Gate Trigger Current |
50 µA |
Peak On-State Voltage |
1.55 V |
Maximum Gate Trigger Voltage |
1.3 V |
Maximum Holding Current |
50 mA |
Rated Average On-State Current |
16 A |
