Ships within 20 days
View
View
View
View

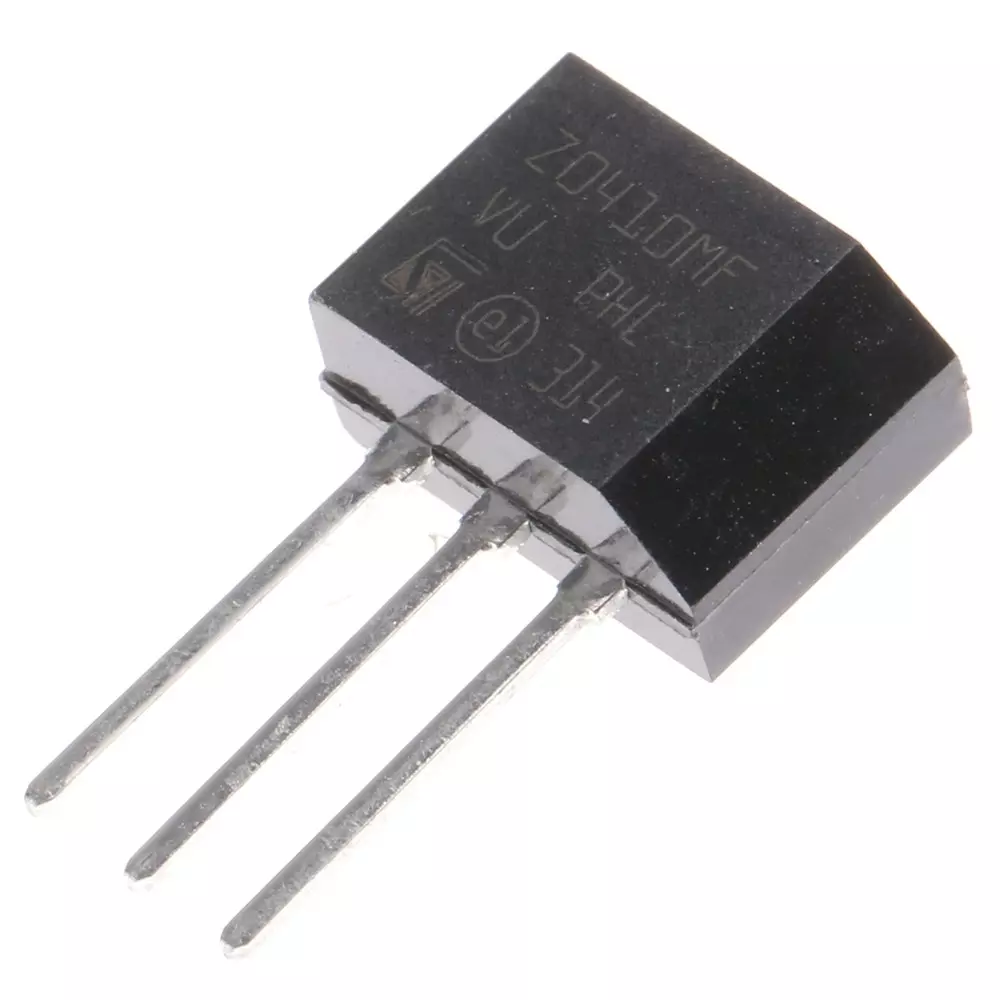

| Model No | Z0410MF 1AA2 |
| Type of Product | TRIAC |
| Dimension | 10.1x4.5x7.3 mm |
| Height | 7.3 mm |
Model No |
Z0410MF 1AA2 |
Type of Product |
TRIAC |
Dimension |
10.1x4.5x7.3 mm |
Height |
7.3 mm |
Width |
4.5 mm |
Country of Origin |
United States |
Pack of |
10 Pcs |
Mounting Type |
Through Hole |
Maximum Operating Temperature |
+125°C |
Minimum Operating Temperature |
-40°C |
Length |
10.1 mm |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Package Type |
TO-202 |
Pin Count |
3 |
Repetitive Peak Off-State Current |
0.005 µA |
Repetitive Peak Forward Blocking Voltage |
600 V |
Surge Current Rating |
21 A |
Repetitive Peak Reverse Voltage |
600 V |
Maximum Gate Trigger Current |
25 µA |
Peak On-State Voltage |
2 V |
Maximum Gate Trigger Voltage |
1.3 V |
Maximum Holding Current |
25 mA |
Rated Average On-State Current |
4 A |
