Ships within 20 days
View
View
View
View

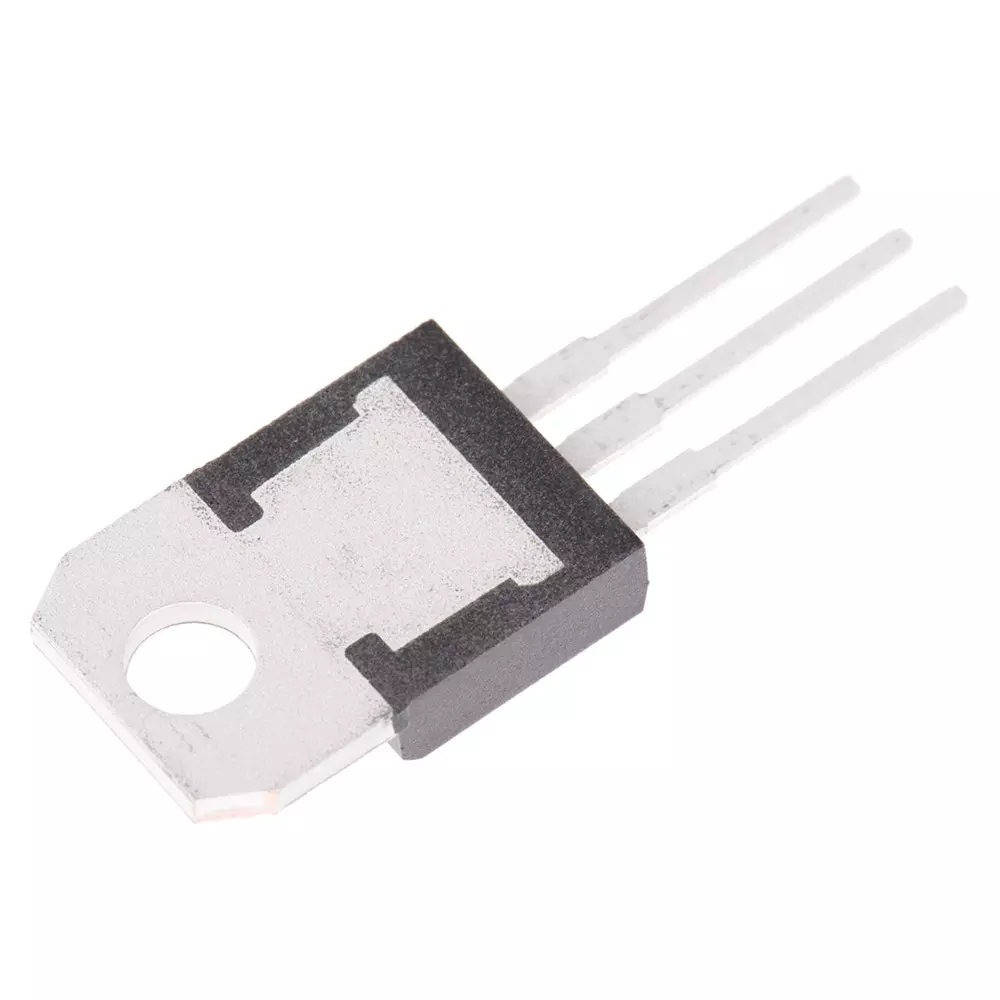

| Model No | T405-600T |
| Type of Product | TRIAC |
| Dimension | 10.4x4.6x9.15 mm |
| Height | 9.15 mm |
Model No |
T405-600T |
Type of Product |
TRIAC |
Dimension |
10.4x4.6x9.15 mm |
Height |
9.15 mm |
Width |
4.6 mm |
Country of Origin |
United States |
Pack of |
5 Pcs |
Mounting Type |
Through Hole |
Maximum Operating Temperature |
+125°C |
Minimum Operating Temperature |
-40°C |
Length |
10.4 mm |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Package Type |
TO-220AB |
Pin Count |
3 |
Repetitive Peak Off-State Current |
0.005 µA |
Repetitive Peak Forward Blocking Voltage |
600 V |
Surge Current Rating |
31 A |
Repetitive Peak Reverse Voltage |
600 V |
Maximum Gate Trigger Current |
5 µA |
Peak On-State Voltage |
1.56 V |
Maximum Gate Trigger Voltage |
1.3 V |
Maximum Holding Current |
10 mA |
Rated Average On-State Current |
4 A |
