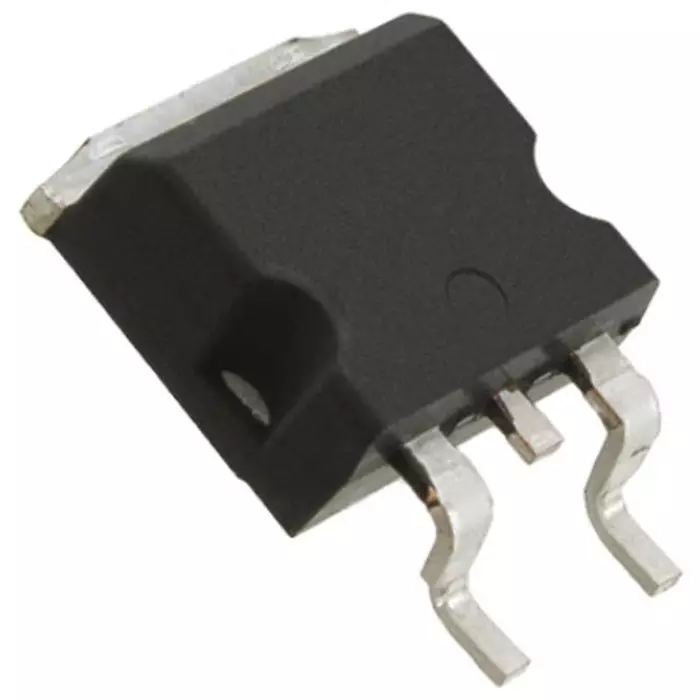

| Type of Product | DeepGate, STripFET N-Channel MOSFET, 110 A, 100 V, 3-Pin H2PAK-2 |
| Height | 4.8mm |
| Width | 10.57mm |
| Country of Origin | China |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
DeepGate, STripFET N-Channel MOSFET, 110 A, 100 V, 3-Pin H2PAK-2 |
Height |
4.8mm |
Width |
10.57mm |
Country of Origin |
China |
Pack of |
Pack of 1000 |
Mounting Type |
Surface Mount |
Maximum Operating Temperature |
+175 °C |
Minimum Operating Temperature |
-55 °C |
Length |
10.4mm |
Series |
DeepGate, STripFET |
Name of Manufacturer/Packer/Importer |
STMicroelectronics |
Package Type |
H2PAK-2 |
Pin Count |
3 |
Channel Type |
N |
Number of Elements Per Chip |
1 |
Channel Mode |
Enhancement |
Transistor Material |
Si |
Maximum Gate Threshold Voltage |
4.5V |
Maximum Drain Source Resistance |
3.9 mΩ |
Maximum Gate Source Voltage |
-20 V, +20 V |
Minimum Gate Threshold Voltage |
2.5V |
Typical Gate Charge @ Vgs |
117 nC @ 10 V |
Maximum Power Dissipation |
250 W |
Transistor Configuration |
Single |
Manufacturer Model Number |
STH150N10F7-2 |
Maximum Continuous Drain Current |
110 A |
Maximum Drain Source Voltage |
100 V |
