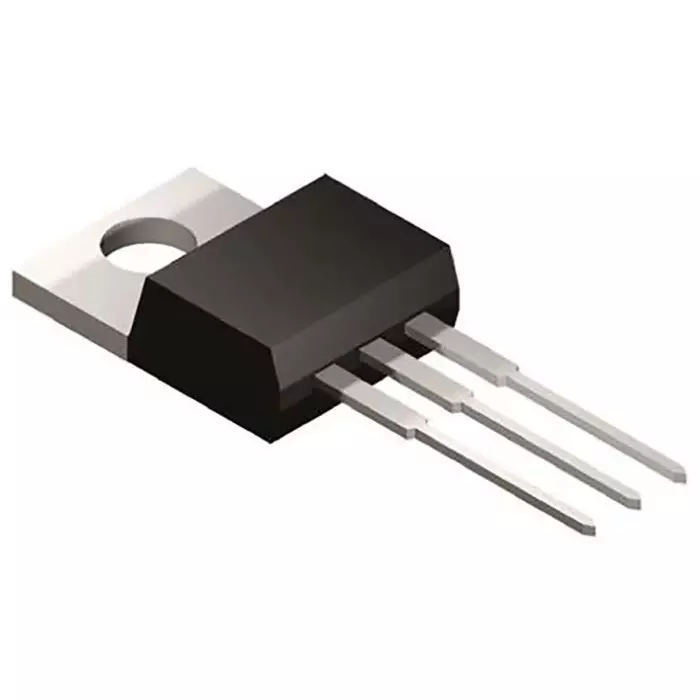

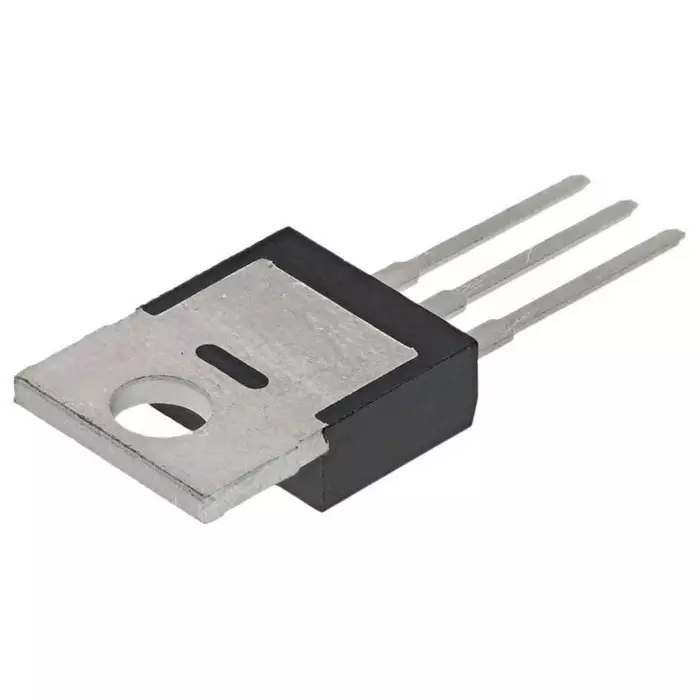

| Type of Product | DeepGate, STripFET N-Channel MOSFET, 120 A, 60 V, 3-Pin TO-220 |
| Height | 15.75mm |
| Width | 4.6mm |
| Country of Origin | US |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
DeepGate, STripFET N-Channel MOSFET, 120 A, 60 V, 3-Pin TO-220 |
Height |
15.75mm |
Width |
4.6mm |
Country of Origin |
US |
Pack of |
Each of 1 Piece |
Mounting Type |
Through Hole |
Maximum Operating Temperature |
+175 °C |
Minimum Operating Temperature |
-55 °C |
Length |
10.4mm |
Series |
DeepGate, STripFET |
Name of Manufacturer/Packer/Importer |
STMicroelectronics |
Package Type |
TO-220 |
Pin Count |
3 |
Channel Type |
N |
Number of Elements Per Chip |
1 |
Channel Mode |
Enhancement |
Transistor Material |
Si |
Maximum Gate Threshold Voltage |
4V |
Maximum Drain Source Resistance |
3.7 mΩ |
Maximum Gate Source Voltage |
-20 V, +20 V |
Minimum Gate Threshold Voltage |
2V |
Typical Gate Charge @ Vgs |
183 nC @ 10 V |
Maximum Power Dissipation |
300 W |
Transistor Configuration |
Single |
Manufacturer Model Number |
STP260N6F6 |
Maximum Continuous Drain Current |
120 A |
Maximum Drain Source Voltage |
60 V |
