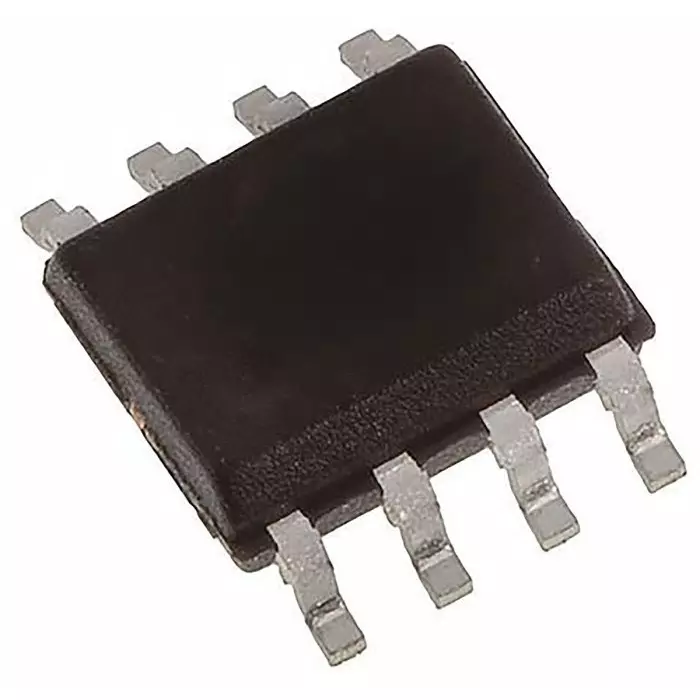

| Type of Product | DeepGate, STripFET N-Channel MOSFET, 5 A, 60 V, 8-Pin SOIC |
| Height | 1.65mm |
| Width | 4mm |
| Country of Origin | US |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
DeepGate, STripFET N-Channel MOSFET, 5 A, 60 V, 8-Pin SOIC |
Height |
1.65mm |
Width |
4mm |
Country of Origin |
US |
Pack of |
Each of 1 Piece |
Mounting Type |
Surface Mount |
Maximum Operating Temperature |
+150 °C |
Length |
5mm |
Series |
DeepGate, STripFET |
Name of Manufacturer/Packer/Importer |
STMicroelectronics |
Package Type |
SOIC |
Pin Count |
8 |
Channel Type |
N |
Number of Elements Per Chip |
1 |
Channel Mode |
Enhancement |
Transistor Material |
Si |
Maximum Gate Threshold Voltage |
2.5V |
Maximum Drain Source Resistance |
55 mΩ |
Maximum Gate Source Voltage |
-20 V, +20 V |
Minimum Gate Threshold Voltage |
1V |
Typical Gate Charge @ Vgs |
17 nC @ 5 V |
Maximum Power Dissipation |
2.5 W |
Transistor Configuration |
Single |
Manufacturer Model Number |
STS5NF60L |
Maximum Continuous Drain Current |
5 Amp |
Maximum Drain Source Voltage |
60 V |
