| Type of Product | Fiber Laser Welding Machine |
| Weight | 38.2 Kg |
| Dimension | 728 × 327 × 512 mm |
| Cable Length | 5 m |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Fiber Laser Welding Machine |
Weight |
38.2 Kg |
Dimension |
728 × 327 × 512 mm |
Cable Length |
5 m |
Country of Origin |
China |
Operating Temperature |
-10 ℃ – 40 ℃ |
Series |
MetalFab |
Storage Temperature |
-10 ℃ – 60 ℃ |
Input Voltage |
200-240 V AC |

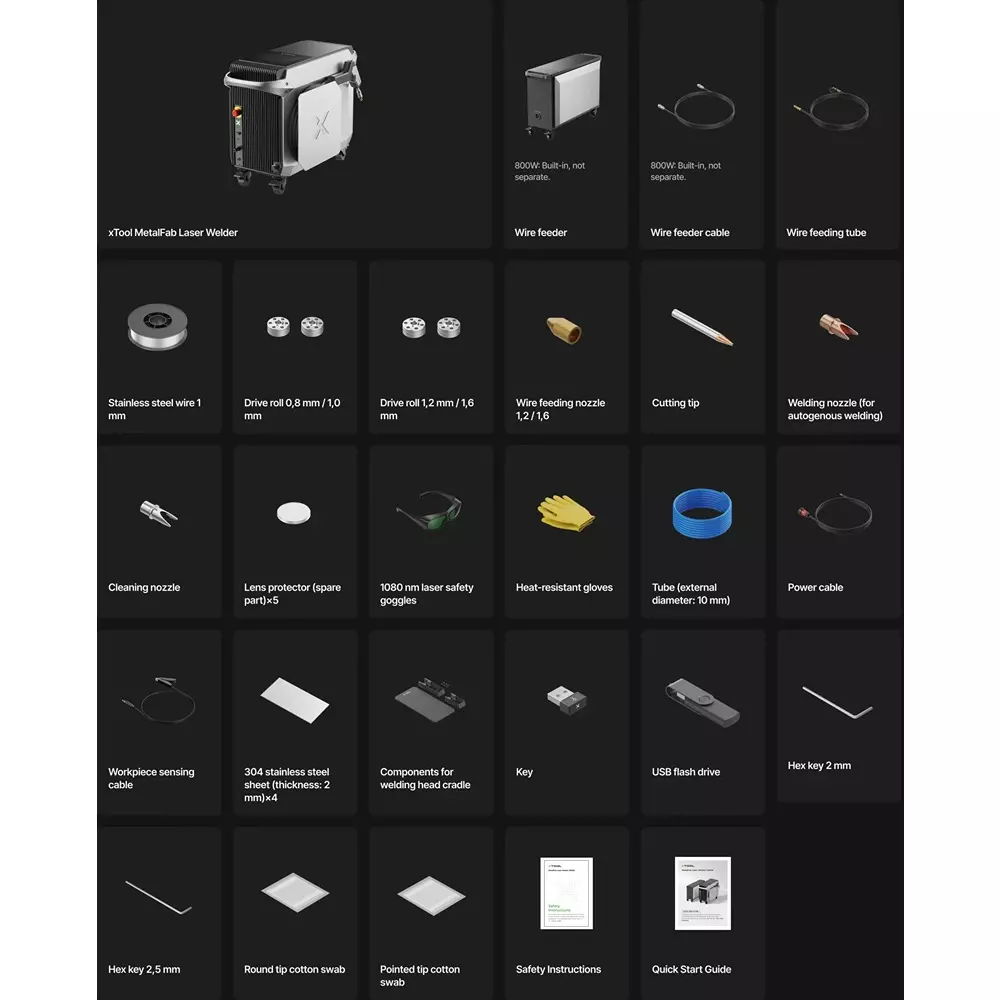

Package Contains |
xTool MetFab Laser Welder, 800 W built-in power supply, 80 W built-in power supply, wire feeder, wire feeder cable, wire feeding tube, stainless steel wire 1 mm, drive roll 0.8 mm/1.0 mm, drive roll 1.2 mm/1.6 mm, 1.2/1.6 feeding nozzle, cutting tip, autogenous nozzle for wire-less welding, cleaning nozzle, lens protector spare part x5, 1060nm laser safety goggles, heat-resistant gloves, tube external diameter 10 mm, power cable, workpiece sensing cable, 304 stainless steel sheet thickness 2 mm x4, components for welding head cradle, key, USB flash drive, hex key 2 mm, hex key 2.5 mm, round tip cotton swab, pointed tip cotton swab, safety instructions, quick start guide |
Name of Manufacturer/Packer/Importer |
Protomont Technologies LLP |
Wavelength |
1080 ± 10 nm |
Rated Power |
4200 W |
Laser Type |
Fiber Laser |
Gas |
Nitrogen or Argon |
Cooling System |
Air-cooling |
Laser power |
1200 W |
Safety |
Class 4 Laser Safety |
Conversion Rate |
Photoelectric: 36% |
Full Load Current (Amps) |
Max 21 A |
For Material |
Stainless steel, aluminum, carbon steel, titanium, nickel alloy, brass, galvanized sheet, magnesium, etc. |
Welding Mode |
Continuous / Spot / Pulse Welding |
Processing Mode |
Welding / Cutting / Rust Removal & Cleaning |
Processing Thickness |
0.2 – 5 mm |
