| Type of Product | Fiber Laser Welding Machine and CNC Laser Cutter |
| Weight | 38.2 Kg (Welder), 150 Kg (Cutter) |
| Dimension | 728 × 327 × 512 mm (Welder), 1175 × 1157 × 1230 mm (Cutter) |
| Cable Length | 5 m |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Fiber Laser Welding Machine and CNC Laser Cutter |
Weight |
38.2 Kg (Welder), 150 Kg (Cutter) |
Dimension |
728 × 327 × 512 mm (Welder), 1175 × 1157 × 1230 mm (Cutter) |
Cable Length |
5 m |
Country of Origin |
China |
Operating Temperature |
-10 ℃ – 40 ℃ (Welder), 0 ℃ – 40 ℃ (Cutter) |
Series |
MetalFab |
Storage Temperature |
-10 ℃ – 60 ℃ |
Input Voltage |
100-240 V AC |
Package Contains |

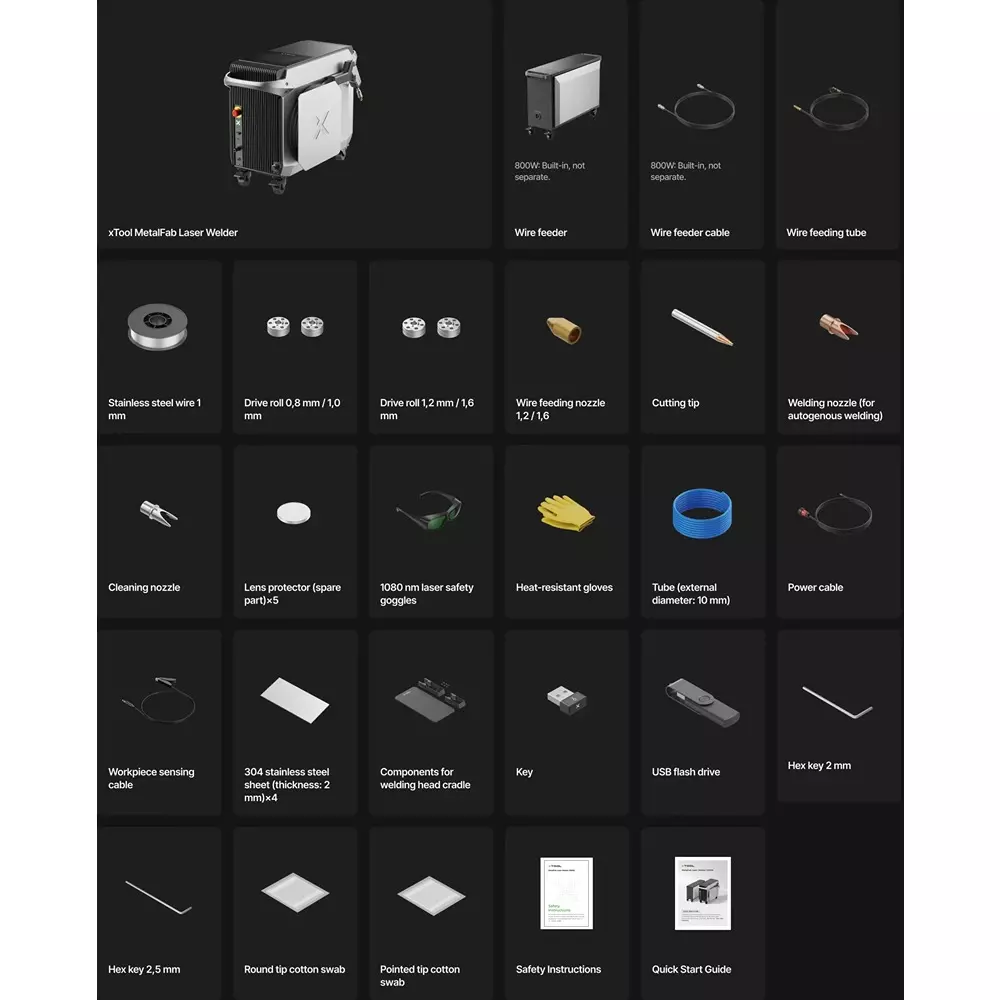

xTool MetFab Laser Welder, 800 W built-in power supply, 80 W built-in power supply, wire feeder, wire feeder cable, wire feeding tube, stainless steel wire 1 mm, drive roll 0.8 mm/1.0 mm, drive roll 1.2 mm/1.6 mm, 1.2/1.6 feeding nozzle, cutting tip, autogenous nozzle for wire-less welding, cleaning nozzle, lens protector spare part x5, 1060nm laser safety goggles, heat-resistant gloves, tube external diameter 10 mm, power cable, workpiece sensing cable, 304 stainless steel sheet thickness 2 mm x4, components for welding head cradle, key, USB flash drive, hex key 2 mm, hex key 2.5 mm, round tip cotton swab, pointed tip cotton swab, safety instructions, quick start guide, xTool MetFab CNC Cutter, cleaning nozzle, telescopic cutting nozzle, cutting tip, ceramic ring, power cable, co mmunication cable, slats-5, Z-shaped wrench, external antenna, cable fixing block, hook, laser alignment card, red stamp pad, level, computer connection cable, hex key 3 mm, hex key 4 mm, wrench, storage box, screw M3×15, screw M4×10, screw M6 12×10, camera calibration board, metal sheets, pipe clamp, baseplate, exhaust fan, smoke exhaust pipe, safety instructions, quick start guide |
Name of Manufacturer/Packer/Importer |
Protomont Technologies LLP |
Accuracy |
Motion: ± 0.1 mm |
Wavelength |
1080 ± 10 nm |
Working Area |
610 × 610 mm |
Rated Power |
Welder: 4200 W, Cutter: 250 W |
Maximum Speed |
X/Y Axis: 0.1G |
Speed |
Exhaust Fan: 2800 RPM (± 10%) |
Laser Type |
Fiber Laser |
Gas |
Nitrogen or Argon |
Cooling System |
Air-cooling |
Laser power |
1200 W |
Safety |
Class 4 Laser Safety |
Conversion Rate |
Photoelectric: 36% |
Full Load Current (Amps) |
Max 21 A (Welder), Max 2.5 A (Cutter) |
For Material |
Stainless steel, aluminum, carbon steel, titanium, nickel alloy, brass, galvanized sheet, magnesium, etc. |
Welding Mode |
Continuous / Spot / Pulse Welding |
Processing Mode |
Welder: Welding / Cutting / Rust Removal & Cleaning, Cutter: CNC Cutting / CNC Rust Removal & Cleaning |
Processing Thickness |
0.2 – 5 mm |
Working Speed |
400 mm/s |
Pass-Through Size |
610 × ∞ mm |
Cutting Thickness (mm) |
Up to 10 mm (with 1200 W Welder), Up to 8 mm (with 800 W Welder) |
Travel |
610 mm (X Axis and Y Axis), 90 mm (Z Axis) |
