| Light Source | LED sphere |
| Type | With transformer |
| Protection Class | IP65 oil-proof type |
| Shape | Round shape (metal ring) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Light Source |
LED sphere |
Type |
With transformer |
Protection Class |
IP65 oil-proof type |
Shape |
Round shape (metal ring) |
Type of Product |
LED Pilot Light |
Model No |
M30ILT200RLE |
Country of Origin |
Japan |
Light Colour |
Red |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Strength |
(Terminal) 0.8Nm for 15 seconds |
Temperature Rise |
40K or less |
Insulation_Resistance (MΩ) |
100 or more (500V) |
Import Country |
Direct Import from Japan |

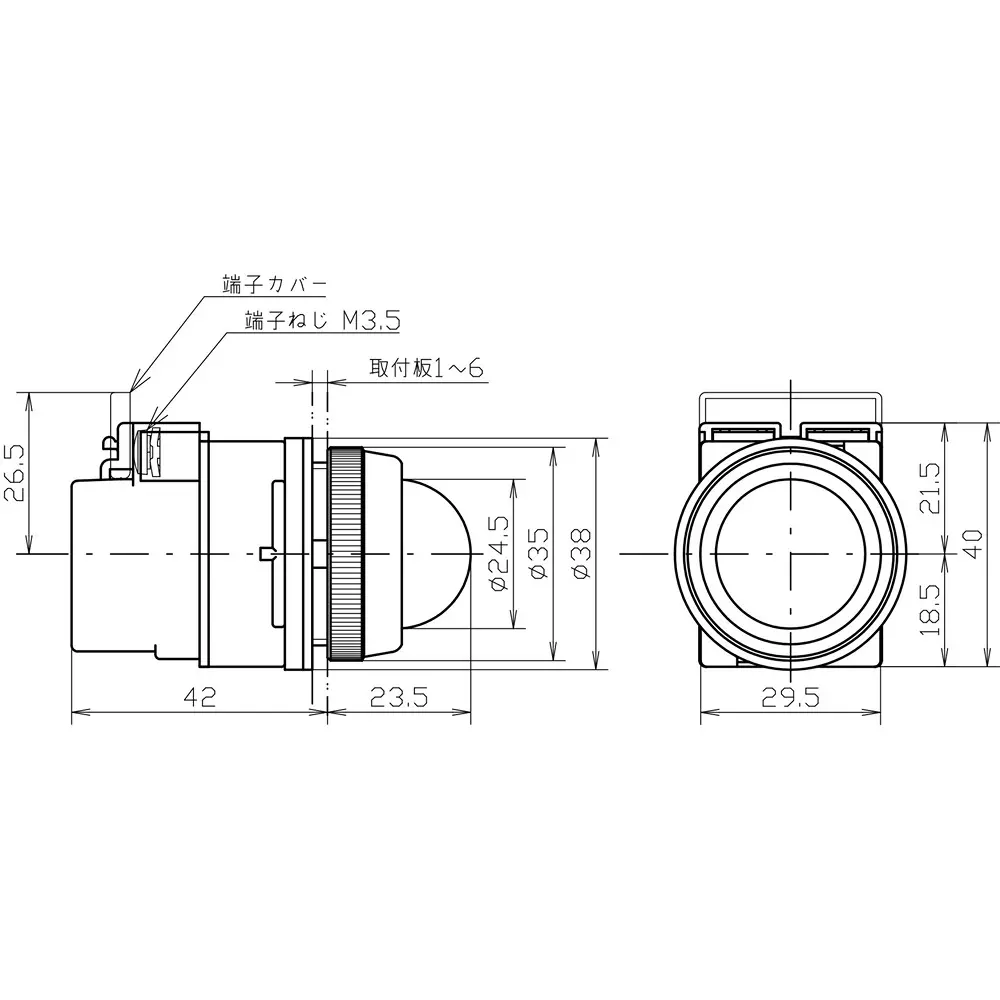

Mounting Hole Diameter (Φmm) |
30.5(+0.5 - 0) |
Rated Secondary Voltage (V) |
5.5 |
Operation Ambient Temperature (°C) |
-20 - 55 |
Shock Resistance (m/s²) |
490 |
Monotaro ID |
45546067 |
Rated Insulation Voltage (V) |
AC/DC600 |
Relative Humidity |
45 - 85% |
Installation Altitude (m) |
2000 or less |
Vibration Resistance |
10-55Hz, double amplitude 1.5mm |
Transformer Secondary Short Circuit |
No disconnection or ignition |
Rated Voltage (V) |
200-220 |
RoHS Directive |
Correspondence |
