| Type | Finger type |
| Protection Class | IP67, IP65(IEC) |
| Material | MS-SFC-1 (standard mounting bracket): SUS |

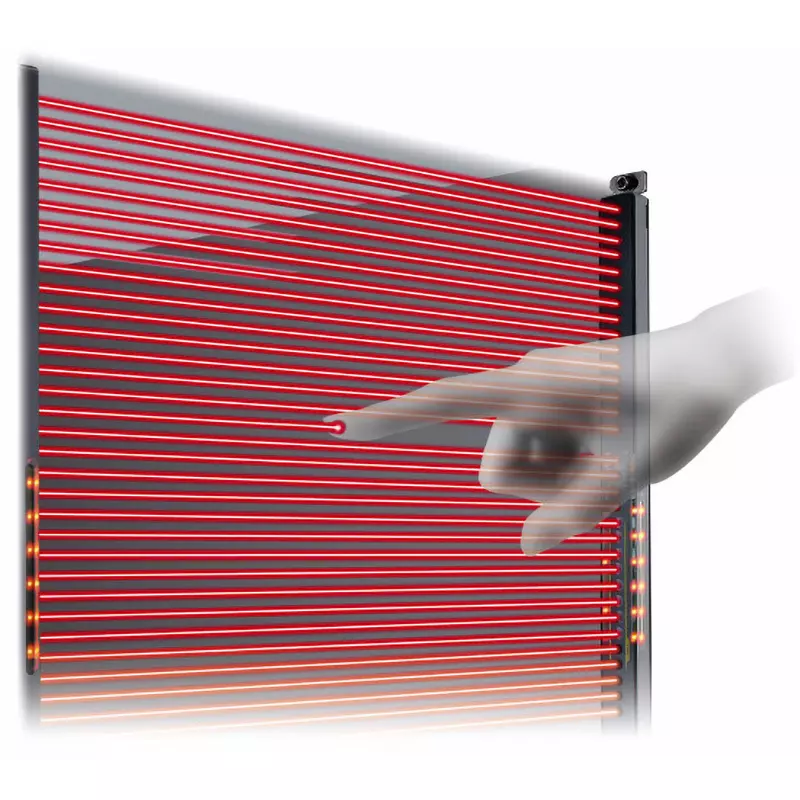

| Type of Product | Ultra Thin Light Curtain |
Type |
Finger type |
Protection Class |
IP67, IP65(IEC) |
Material |
MS-SFC-1 (standard mounting bracket): SUS |
Type of Product |
Ultra Thin Light Curtain |
Suitable For |
Compliance with regulations and certifications: Compliance with regulations and certifications CE marking (Machinery Directive, EMC Directive, RoHS Directive), UKCA marking (Machinery Regulations, EMC Regulations, RoHS Regulations), TUV SUD certification, TUV SUD NRTL certification, Korea S mark (SF4C-H���(-J05) only) |
Model No |
SF4C-F39-J05 |
Country of Origin |
Japan |
Included Components |
MS-SFC-1 (standard mounting bracket): 1 set, SF4C-TR14 (test rod): 1 piece |
Case Material |
Polycarbonate Alloy |
Name of Manufacturer/Packer/Importer |
Panasonic Devices SUNX Co., Ltd. |
Import Country |
Direct Import from Japan |
Operation Ambient Temperature (°C) |
-10 to 55 (but no condensation or freezing) |
Monotaro ID |
47118416 |
Specifications |
Effective aperture angle: ±2.5° or less at a detection distance of 3 m (according to IEC 61496-2, ANSI/UL 61496-2) |
Function |
Optional functions: Fixed blanking function, floating blanking function, auxiliary output switching function, safety input function (safety sensor), large application indicator light setting change function, interlock setting change function, external device monitor setting change function, muting setting change function, override setting change function, protect function. Large application indicator light function: Equipped. Override function: Equipped. Muting function: Equipped. Safety input function: Equipped (safety contact). External device monitor function: Equipped. Interlock function: Equipped (manual reset/automatic reset). Test input function: Equipped. ELCA function: Equipped (automatic interference reduction). |
Power Supply Voltage (V) |
24 DC-15 to 10% Ripple P-P 10% or less |
Insulation Resistance (MOhm) |
More than 20 in DC500 V Mega |
Response Time |
OFF response 9ms or less, ON response 90ms or less |
Applicable Standard |
International standards: IEC 61496-1/2 (Type 4), ISO 13849-1 (Category 4, PLe), IEC 61508-1 to 7 (SIL3); Japan: JIS B 9704-1/2 (Type 4), JIS B 9705-1 (Category 4), JIS C 0508 (SIL3); Europe: EN 61496-1 (Type 4), EN ISO 13849-1 (Category 4, PLe), EN 61508-1 to 7 (SIL3), EN 55011, EN 50178, EN 61000-6-2; North America: ANSI/UL 61496-1/2 (Type 4), ANSI/UL 508, UL 1998 (Class 2), CAN/CSA 61496-1/2 (Type 4), CAN/CSA C22.2 No.14, OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06 |
Cable |
0.15 mm² (power line is 0.2 mm² ) 12-core heat-resistant PVC cable with connector, 0.5m included |
Control Output |
Maximum sink current: 200 mA Applied voltage: Same as power supply voltage (between control output and 0 V) Residual voltage: 2.5 V or less (at a sink current of 200 mA and a cable length of 10 m) Leakage current: 200 ��A or less (including when the power is off) Maximum load capacity: 1 ��F (from no load to maximum sink current) Load wiring resistance: 3 �� or less |
Output |
Auxiliary output: Maximum inflow current: 100mA Applied voltage: Same as power supply voltage (between auxiliary output and 0V) Residual voltage: 2.5V or less (at inflow current of 100mA, cable length 10m) |
Storage Temperature Range |
-25 to 60°C |
Vibration Resistance (Destruction) |
10 to 55 Hz, 0.75 mm double amplitude, 2 hours each in XYZ directions |
