Ships within 25 days
View
View
View
View

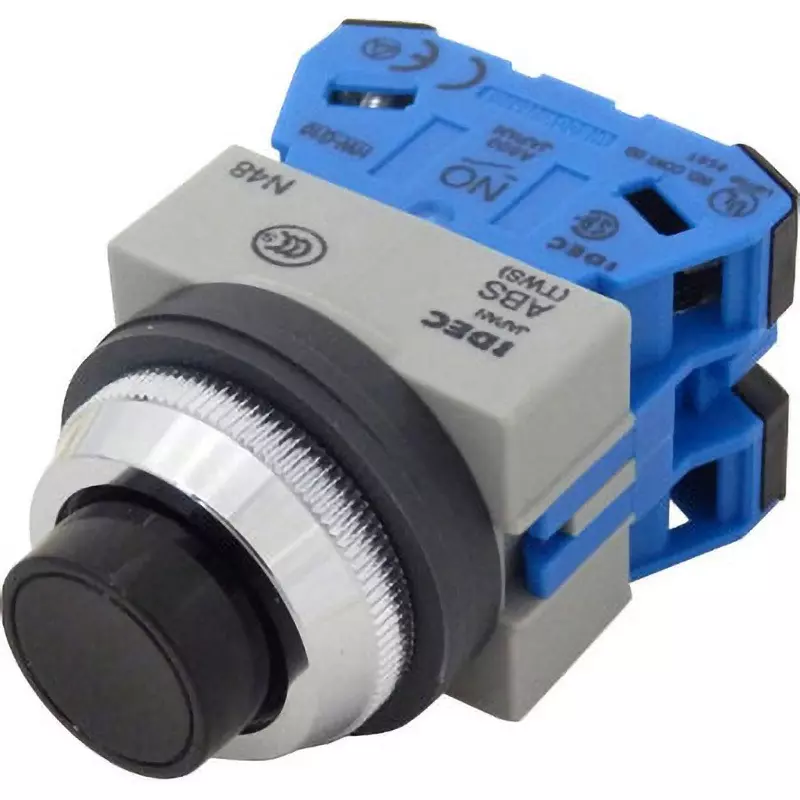

| Type of Product | Diameter 25 Tws Series Push Button Switch (Protruding) |
| Model No | ABS220NB |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | IDEC Corporation |
Type of Product |
Diameter 25 Tws Series Push Button Switch (Protruding) |
Model No |
ABS220NB |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
IDEC Corporation |
Contact Configuration |
2a |
Type |
Non-illuminated type |
Protection Class |
IP65 |
Standard |
UL508, CSA C22.2 No.14, EN60947-5-1, GB14048.5 |
Storage Temperature |
-40 to 80 (no icing) |
Monotaro ID |
6926945 |
Ambient Humidity to Use |
45% to 85% (with no condensation) |
Terminal Shape |
Screw terminal |
Import Country |
Direct Import from Japan |
Operation Type |
Momentary |
Mounting Hole Diameter (Φmm) |
25 |
Button Shape |
Round (projection) |
Button Color |
Black |
Operation Ambient Temperature (°C) |
-25-50 (no icing) |
Ring Material |
Metal (Chrome plating) |
Rated Operating Current (A) |
Resistance load: DC24V: 8, DC48V: 4, DC110V: 2.2, DC220V: 1.1, AC24V: 10, AC50V: 10, AC110V: 10, AC220V: 6, AC440V: 2 |
Main Unit Type |
Integrated type |
